Renault Koleos Service Repair Manual: Rear bench seatback locking: Removal - Refitting

Renault Koleos Service Repair Manual / Trim and upholstery / Rear seat frames and runners / Rear bench seatback locking: Removal - Refitting

Rear seat frames and runners

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the headrest,
    • the rear centre armrest (see 79A, Seat components, Rear centre arm rest: Removal - Refitting, page 79A-5) ,
    • the rear bench seatback (see 76A, Rear seat frames and runners, Complete rear seat: Removal - Refitting, page 76A-1) ,
    • the rear bench seatback trim (see 78A, Rear seat trim, 1/3 and 2/3 rear bench seat seatback trim: Removal - Refitting, page 78A-3) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear seat frames and runners

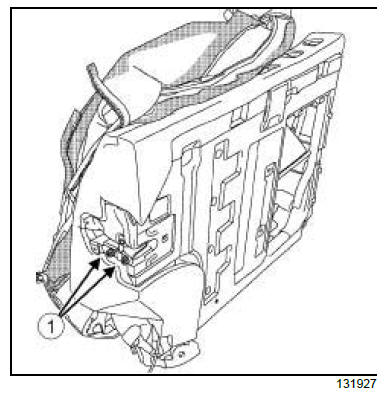

  • Remove:
    • the bolts (1) ,
    • the foam-cover assembly, partially.

Rear seat frames and runners

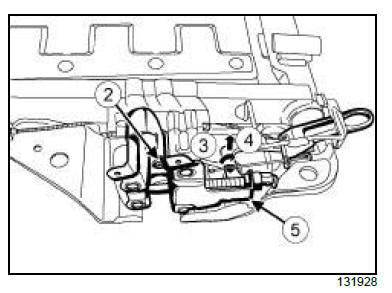

  • Remove the rear bench seatback unlocking mechanism bolt (2) .
  • Unclip the cable hook at (3) and (4) .
  • Remove the rear bench seatback unlocking mechanism (5) .

Rear seat frames and runners

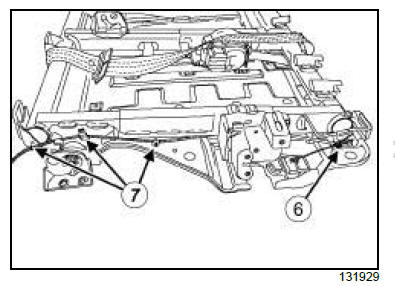

  • Unclip the cable at (6) .
  • Remove:
    • the clips (7) ,
    • the rear bench seatback unlocking cable.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the clips,
    • the rear bench seatback unlocking cable,
    • the rear bench seatback unlocking mechanism,
    • the cable hook,
    • the rear bench seatback unlocking mechanism bolts (2) .

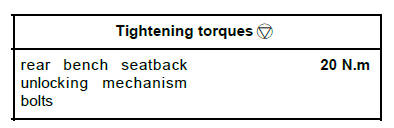

  • Torque tighten the rear bench seatback unlocking mechanism bolts (20 N.m).
  • Refit:
    • the foam-cover assembly,
    • the bolts (1) .

II - FINAL OPERATION.

  • Refit:
    • the rear bench seatback trim (see 78A, Rear seat trim, 1/3 and 2/3 rear bench seat seatback trim: Removal - Refitting, page 78A-3) ,
    • the rear bench seatback (see 76A, Rear seat frames and runners, Complete rear seat: Removal - Refitting, page 76A-1) ,
    • the rear centre armrest (see 79A, Seat components, Rear centre arm rest: Removal - Refitting, page 79A-5) ,
    • the head rest.
