Renault Koleos Service Repair Manual: Bulkhead insulating material: Removal - Refitting

Renault Koleos Service Repair Manual / Sealing and soundproofing / Soundproofing / Bulkhead insulating material: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the battery (see Battery : Removal - Refitting) (80A, Battery)
    • the battery tray (see Battery tray: Removal - Refitting) (80A, Battery),
    • the air filter unit (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),
    • the air inlet duct,
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing),
    • the scuttle panel half-grille (see Scuttle half-grille: Removal - Refitting) (56A, Exterior equipment),
    • the windscreen wiper mechanism (see Windscreen wiper mechanism: Removal - Refitting) (85A, Wiping - Washing),
    • the scoop under the scuttle panel grille (see Scoop under scuttle panel grille: Removal - Refitting) (56A, Exterior equipment),
    • the particle filter (see Particle filter: Removal - Refitting) (19B, Exhaust).

II - OPERATION FOR REMOVAL OF PART CONCERNED

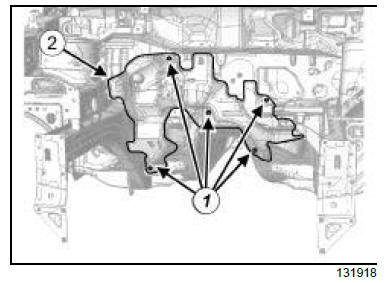

Soundproofing

  • Remove:
    • the clips (1) ,
    • the bulkhead insulation (2) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the bulkhead insulation,
    • the clips.

II - FINAL OPERATION.

  • Refit:
    • the particle filter (see Particle filter: Removal - Refitting) (19B, Exhaust),
    • the scoop under the scuttle panel grille (see Scoop under scuttle panel grille: Removal - Refitting) (56A, Exterior equipment),
    • the windscreen wiper mechanism (see Windscreen wiper mechanism: Removal - Refitting) (85A, Wiping - Washing),
    • the scuttle panel half-grille (see Scuttle half-grille: Removal - Refitting) (56A, Exterior equipment),
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing),
    • the air inlet duct,
    • the air filter unit (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),
    • the battery tray (see Battery tray: Removal - Refitting) (80A, Battery),
    • the battery (see Battery : Removal - Refitting) (80A, Battery).
