AIR CON 01 or AIR CON 02

  1. Dehydrator reservoir
  2. Compressor
  3. Pressure sensor
  4. Condenser
  5. Condenser - compressor connecting pipe
  6. Expansion valve - condenser connecting pipe
  7. Compressor - expansion valve connecting pipe
  8. Intermediate pipe - expansion valve connecting pipe
  9. Intermediate pipe - compressor connecting pipe
  10. Expansion valve
  11. Evaporator
  12. External temperature sensor
  13. Passenger compartment temperature sensor
  14. Solar radiation sensor

2TR

Air conditioning

M9R

Air conditioning

All the components shown in the diagram are located in the engine compartment.

Air conditioning

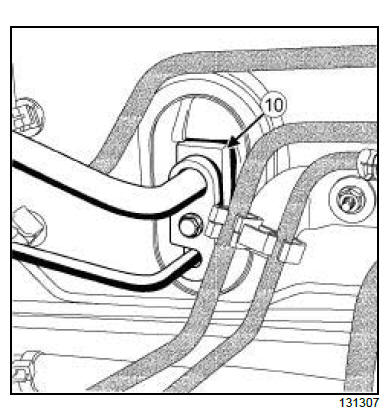

To access the expansion valve (10) , remove the pipe union.

Air conditioning

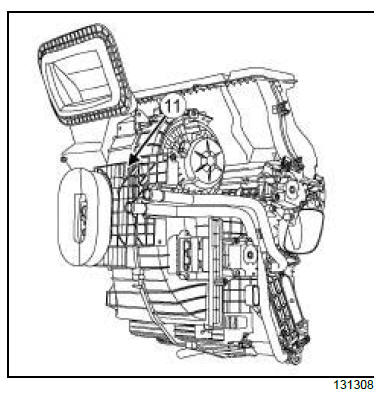

The evaporator (11) cannot be separated from the distribution unit.

Air conditioning

The external temperature sensor is located in front of the radiator.

Air conditioning

The passenger compartment temperature sensor (13) is located on the lower cover of the dashboard on the driver's side.

Air conditioning

The solar radiation sensor is located on the dashboard tweeter grille.
