Renault Koleos Service Repair Manual: Safety accessories

Seat height adjustment system: Removal - Refitting

Safety accessories

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the front side seat belt (see Front side seat belt: Removal - Refitting) (88C, Airbags and pretensioners),
    • the B-pillar upper trim (see B-pillar upper trim: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Safety accessories

  • Remove:

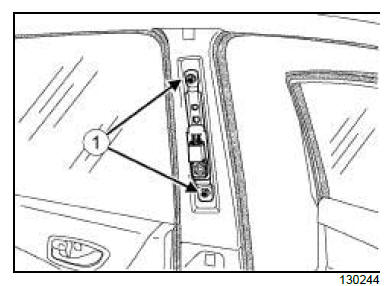

    • the bolts (1) ,
    • the seat belt height adjustment system.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the seat belt height adjustment system.

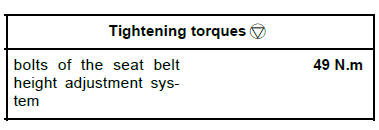

  • Torque tighten the bolts of the seat belt height adjustment system (49 N.m) (1) .

II - FINAL OPERATION.

  • Refit:
    • the B-pillar upper trim (see B-pillar upper trim: Removal - Refitting) (71A, Body internal trim),
    • the front side seat belt (see Front side seat belt: Removal - Refitting) (88C, Airbags and pretensioners),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim).
