Renault Koleos Service Repair Manual: Interior rear-view mirror: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Interior equipment / Interior rear-view mirror: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Interior equipment

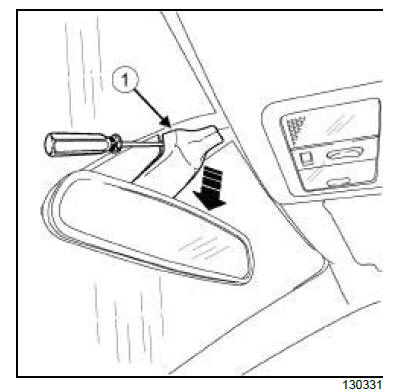

  • Unclip the upper cover (1) .

Interior equipment

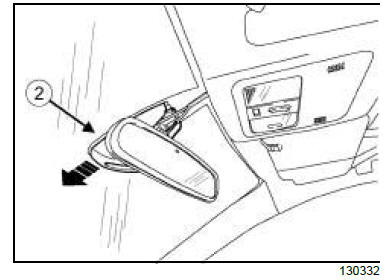

  • Unclip the lower cover (2) .
Note: When removing the rear-view mirror, be careful of the nearby rain sensor to avoid damaging it.

Interior equipment

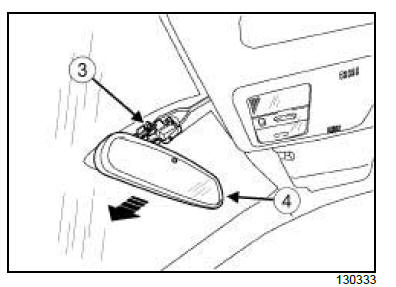

  • Disconnect the connector (3) .
  • Remove interior rear-view mirror (4) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Interior equipment

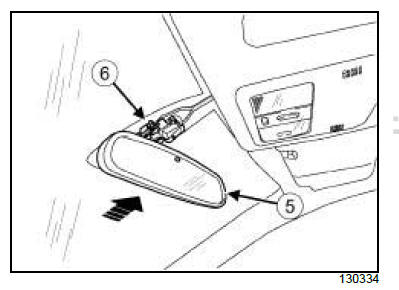

  • Refit the interior rear-view mirror (5) .
  • Connect the connector (6) .
  • Refit:
    • the inner cover (2) ,
    • the upper cover (1) .
