Renault Koleos Service Repair Manual: Rear bumper: Stripping - Rebuilding

STRIPPING

I - STRIPPING PREPARATION OPERATION

  • Remove the rear bumper (this operation requires two people) (see 55A, Exterior protection, Rear bumper: Removal - Refitting, page 55A-4) .

II - STRIPPING OPERATION FOR PART CONCERNED

Exterior protection

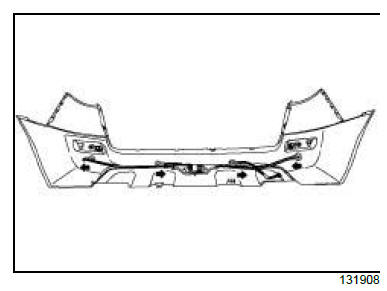

Note: Mark the direction in which the proximity radar connector is fitted before removal.
  • Remove:
    • the proximity radars (depending on the equipment level) (see Proximity radar: Removal - Refitting) (87F, Parking distance control),
    • the rear bumper wiring.

Exterior protection

  • Remove:

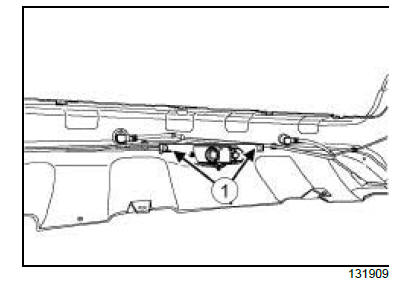

    • the bolts (1) ,
    • the rear fog light (depending on the equipment level).

Exterior protection

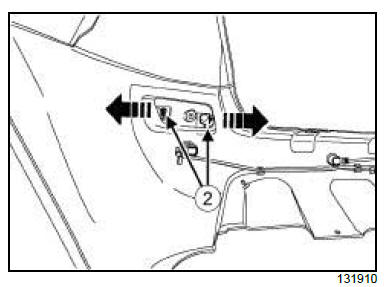

  • Unclip the reflector mounting at (2) .
  • Remove the reflector.

REBUILDING

I - REBUILDING OPERATION FOR PART CONCERNED

WARNING The distance control radars are fragile. Handle with care as the external part cannot withstand impacts.

When drying the bumper and/or proximity radars, the temperature must not exceed 60ºC.

  • Refit:
    • the reflector,
    • the rear fog light (depending on the equipment level),
    • the bolts.

Exterior protection

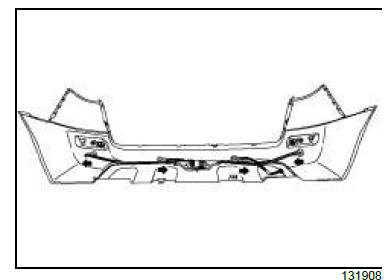

  • Refit:
    • the rear bumper wiring,
    • the proximity radars (depending on the equipment level) (see Proximity radar: Removal - Refitting) (87F, Parking distance control).

II - FINAL OPERATION.

  • Refit the rear bumper (this operation requires two people) (see 55A, Exterior protection, Rear bumper: Removal - Refitting, page 55A-4) .
