Renault Koleos Service Repair Manual: Bonnet release control: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front door sill lining (see B-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the cab floor lining (see Cab floor lining: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Remove:

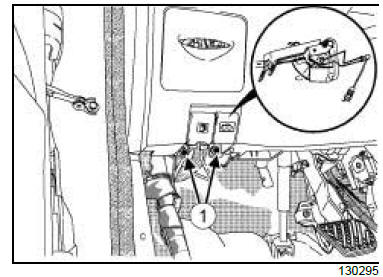

    • the bolts (1) ,
    • the bonnet release control,
    • the bonnet release cable,
    • the hatch release control cable.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the hatch release control cable,
    • the bonnet opening cable,
    • the bonnet release control,
    • the bolts (1) .

II - FINAL OPERATION.

  • Refit:
    • the cab floor lining (see Cab floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front door sill lining (see B-pillar lower trim: Removal - Refitting) (71A, Body internal trim).
    Non-side opening element mechanisms
