REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the fuel filler flap release control cable from the bonnet release control (see 52A, Non-side opening element mechanisms, Bonnet release control: Removal - Refitting, page 52A-1) ,
    • the cab floor lining (see Cab floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the centre floor side soundproofing, partially (see Centre floor side soundproofing: Removal - Refitting) (68A, Soundproofing),
    • the centre floor rear soundproofing, partially (see Centre floor rear soundproofing: Removal - Refitting) (68A, Soundproofing),
    • the C-pillar lower trim (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the luggage retainer cross member (see Luggage retaining cross member: Removal - Refitting) (41D, Rear lower structure),
    • the luggage compartment floor lining (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

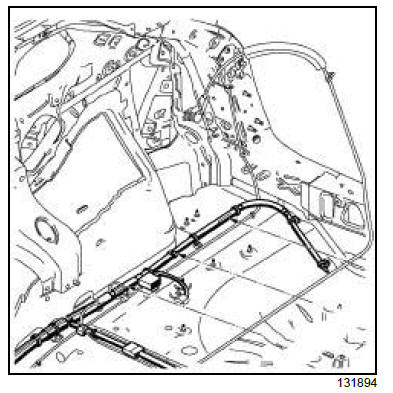

  • Note the fuel filler flap opening release cable routing.

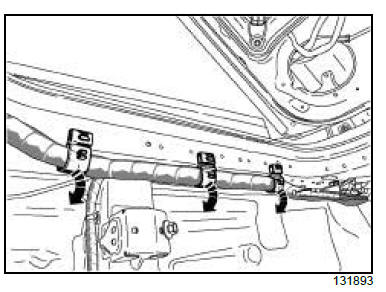

  • Detach the fuel filler flap release control cable from the mounting clips.

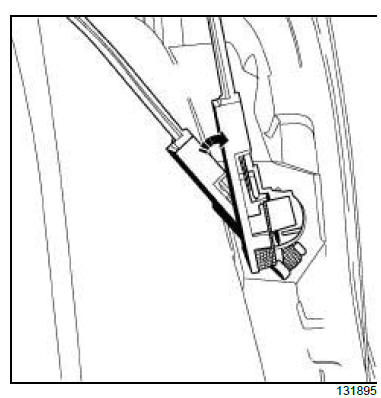

  • Remove the fuel filler flap lock.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the mounting clips and replace them if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

Side opening element mechanisms

  • Refit the release cable on the mounting clips.

Side opening element mechanisms

  • Refit the fuel filler flap lock.
  • Refit:
    • the luggage compartment floor lining (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the luggage retainer cross member (see Luggage retaining cross member: Removal - Refitting) (41D, Rear lower structure),
    • the C-pillar lower trim (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the centre floor rear soundproofing, partially (see Centre floor rear soundproofing: Removal - Refitting) (68A, Soundproofing),
    • the centre floor side soundproofing, partially (see Centre floor side soundproofing: Removal - Refitting) (68A, Soundproofing),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the cab floor lining (see Cab floor lining: Removal - Refitting) (71A, Body internal trim),
    • the fuel filler flap release control cable on the bonnet release control (see 52A, Non-side opening element mechanisms, Bonnet release control: Removal - Refitting, page 52A-1) .
