Renault Koleos Service Repair Manual: Front side door check strap: Removal - Refitting

Side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim),
    • the front speaker (see Front speakers: Removal - Refitting) (86A, Radio).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

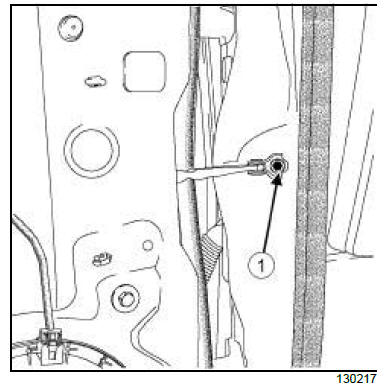

  • Remove the bolt (1) .

Side opening element mechanisms

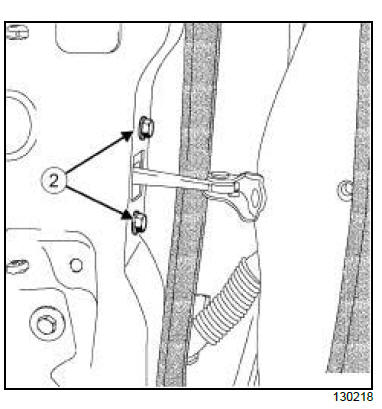

  • Remove:
    • the bolts (2) ,
    • the front side door check strap from inside the door box section.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the front side door tie-rod in the door box section and temporarily refit the bolts on the door.

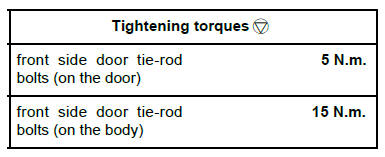

  • Torque tighten:
    • the front side door tie-rod bolts (on the door) (5 N.m.)
    • the front side door tie-rod bolts (on the body) (15 N.m.)

II - FINAL OPERATION

  • Refit:
    • the front speaker (see Front speakers: Removal - Refitting) (86A, Radio),
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim).
