Renault Koleos Service Repair Manual: Bonnet: Removal - Refitting

Non-side opening elements

I - REMOVAL BY MEANS OF THE BONNET NUTS

OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening elements

  • Remove:

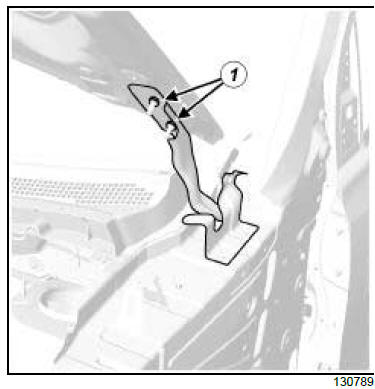

    • the nuts (1) ,
    • the bonnet.

II - REFITTING BY MEANS OF THE BONNET NUTS

OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the cover,
    • the nuts (1) .
  • Adjust the opening clearances and flush fitting (see Vehicle clearances: Adjustment values) (01C, Vehicle bodywork specifications).

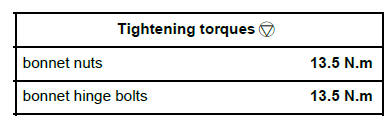

  • Torque tighten the bonnet nuts (13.5 N.m) (1) .

III - REMOVAL BY MEANS OF THE BONNET HINGE BOLTS

1 - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection),
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the headlight (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the front wing (see 42A, Front upper structure, Front wing: Removal - Refitting, page 42A-1) .

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening elements

  • Remove:

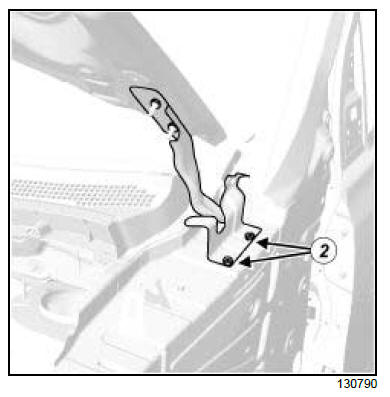

    • the bolts (2) ,
    • the bonnet.

IV - REFITTING BY MEANS OF THE BONNET HINGE BOLTS

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the cover,
    • the bonnet hinge bolts (2) .
  • Adjust the opening clearances and flush fitting (see Vehicle clearances: Adjustment values) (01C, Vehicle bodywork specifications).
  • Torque tighten the bonnet hinge bolts (13.5 N.m) (2) .

2 - FINAL OPERATION

  • Refit:
    • the front wing (see 42A, Front upper structure, Front wing: Removal - Refitting, page 42A-1) ,
    • the headlight (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).
