There is only one way of replacing this part:

  • complete replacement.

I - COMPOSITION OF THE SPARE PART

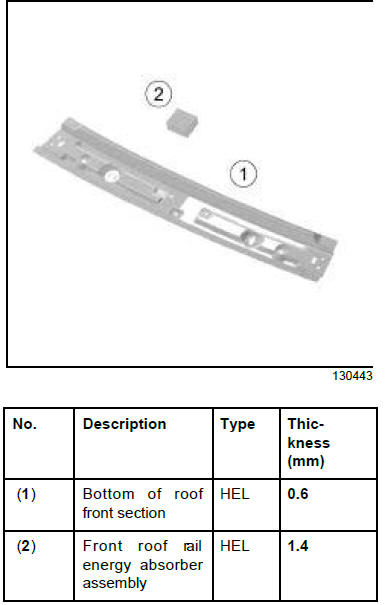

Normal roof

Top of body

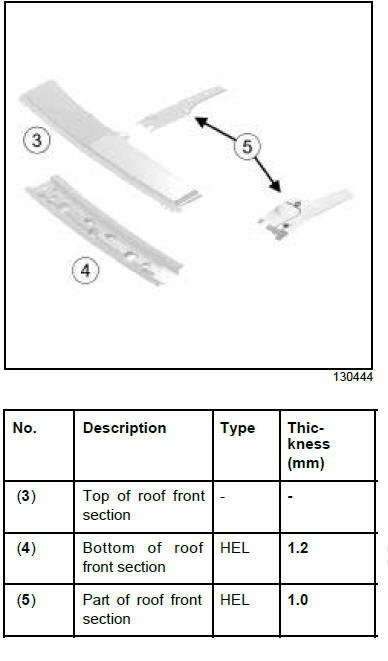

Roof with sunroof

Top of body

II - PART FITTED

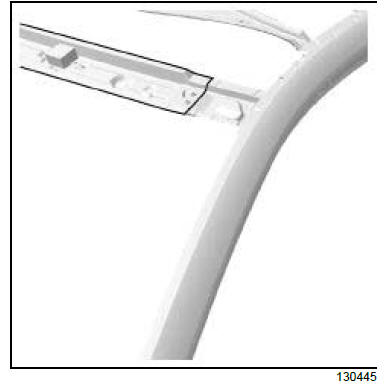

Complete replacement

Normal roof

Top of body

Roof with sunroof

Top of body

Note: For welded connections in three thicknesses, the spot welds on the part replaced should be made in the same place as for the original joint to retain its mechanical specifications. See MR 400.

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Top of body

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).
