Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading the following general information, make sure that there are no special notes associated with the vehicle. These special notes are specified if necessary in other parts of the sub-section dealing with the component.



Note: For a detailed description of a particular connection, see MR 400.

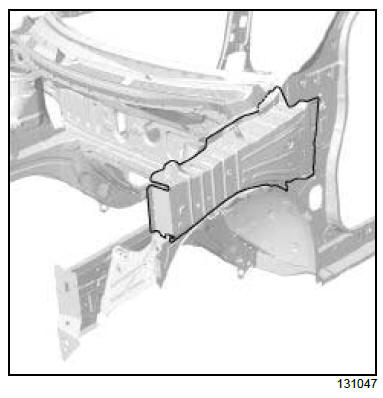

DESIGN OF THE STRUCTURAL COMPONENT

Front upper structure

This type of part secures the hinge mounting and the front wing upper mounting.

Scuttle side panel upper reinforcement: Description

Front upper structure

There is only one way of replacing this part:

  • complete replacement.

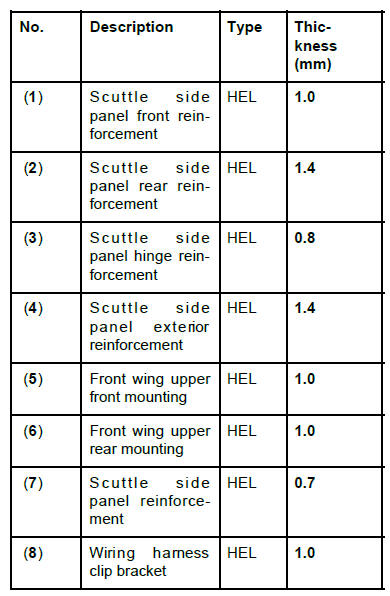

I - COMPOSITION OF THE SPARE PART

Front upper structure

Front upper structure

II - PART IN POSITION

Front upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Front upper structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).
