Renault Koleos Service Repair Manual: Front wing: Removal - Refitting

Front upper structure

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).
    • the headlight (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the door mirror trim.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front upper structure

  • Remove:

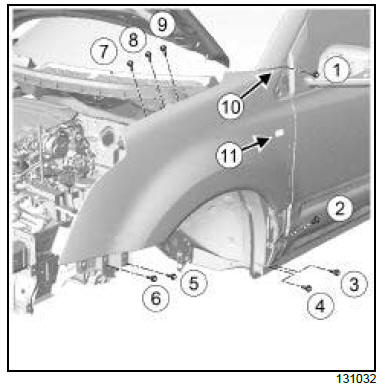

    • the windscreen trim (10) ,
    • the wing direction indicator (11) .
  • Disconnect the wing direction indicator.
  • Remove:
    • the bolts,
    • the front wing.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the front wing,
    • the bolts.
Note: The separating foam seal on the front wing is supplied with the spare part.
  • Connect the wing direction indicator.
  • Refit:
    • the wing direction indicator (11) ,
    • the windscreen trim (10) .

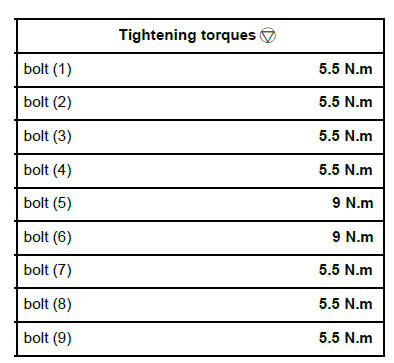

  • Tighten to torque:
    • the bolt (1) (5.5 N.m),
    • the bolt (2) (5.5 N.m),
    • the bolt (3) (5.5 N.m),
    • the bolt (4) (5.5 N.m),
    • the bolt (5) (9 N.m),
    • the bolt (6) (9 N.m),
    • the bolt (7) (5.5 N.m),
    • the bolt (8) (5.5 N.m),
    • the bolt (9) (5.5 N.m),

II - FINAL OPERATION

  • Refit:
    • the door mirror trim,
    • the headlight (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the front wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres).
