Renault Koleos Service Repair Manual: Luggage retainer cross piece: Removal - Refitting

Renault Koleos Service Repair Manual / Panelwork / Rear lower structure / Luggage retainer cross piece: Removal - Refitting

Rear lower structure

I - REMOVAL

1 - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear parcel shelf (see Rear parcel shelf: Removal - Refitting) (57A, Interior equipment),
    • the rear bench seatback (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and runners),
    • the luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the receiver (see Tuner-amplifier: Removal - Refitting) (86A, Radio),
    • the proximity radar computer (see Proximity radar Removal - Refitting) (87F, Parking distance control).

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Rear lower structure

  • Disconnect the connector from the supply cable.
  • Remove:

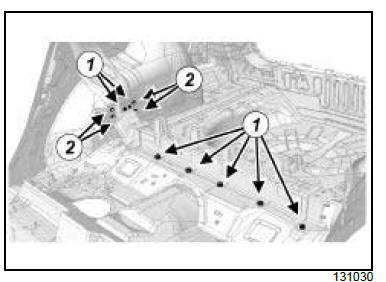

    • the bolts (1) of the luggage retaining cross member on each side,
    • the nuts (2) of the luggage retaining cross member on each side.

II - REFITTING

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the bolts (1) of the luggage retaining cross member on each side,
    • the nuts (2) of the luggage retaining cross member on each side.
  • Connect the supply cable connector.

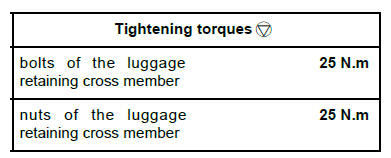

  • Torque tighten:
    • the bolts of the luggage retaining cross member (25 N.m),
    • the nuts of the luggage retaining cross member (25 N.m).

2 - FINAL OPERATION

  • Refit:
    • the proximity radar computer (see Proximity radar Removal - Refitting) (87F, Parking distance control)
    • the receiver (see Tuner-amplifier: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the rear bench seatback (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and runners),
    • the rear parcel shelf (see Rear parcel shelf: Removal - Refitting) (57A, Interior equipment).

Rear impact lower cross member: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear bumper.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear lower structure

  • Remove:

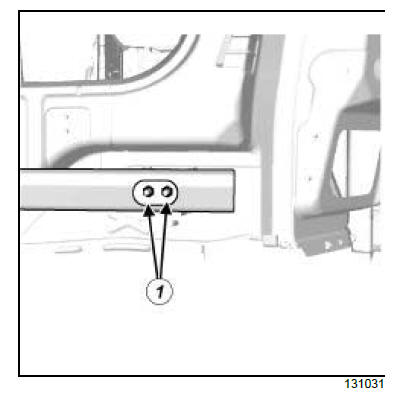

    • the nuts (1) ,
    • the rear impact lower cross member.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear impact lower cross member,
    • the nuts (1) .

II - FINAL OPERATION.

  • Refit the rear bumper.
    Rear floor front cross member: Description

    Front upper structure
