Renault Koleos Service Repair Manual: Front end side cross member: Description

Renault Koleos Service Repair Manual / Panelwork / Front lower structure / Front end side cross member: Description

There is only one way of replacing this part:

  • complete replacement.

I - COMPOSITION OF THE SPARE PART

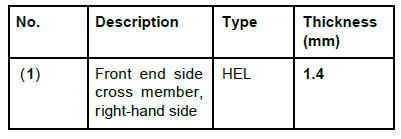

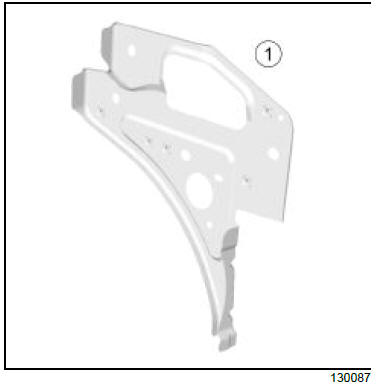

Right-hand side

Front lower structure

Front lower structure

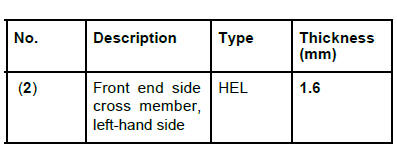

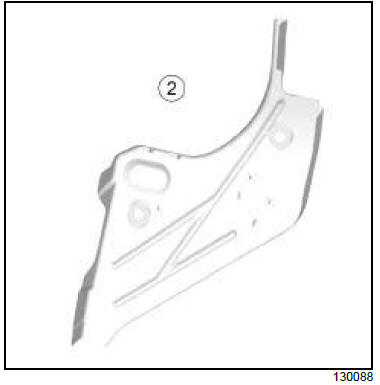

Left side

Front lower structure

Front lower structure

II - PART FITTED

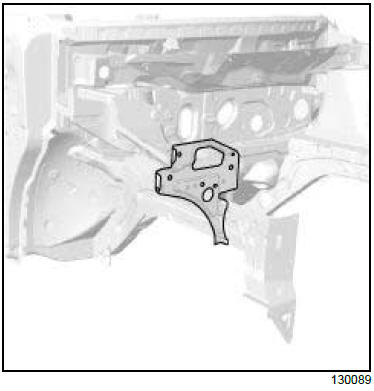

Right-hand side

Front lower structure

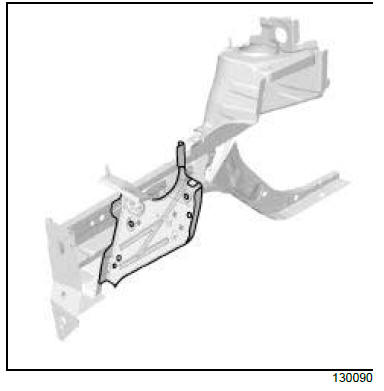

Left side

Front lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
