Renault Koleos Service Repair Manual: Control unit: Removal - Refitting

FOOT BRAKE AUTOMATIC CONTROL

Electronic parking brake

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Release the parking brake.
  • Remove:
    • the rear centre luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front luggage compartment floor box (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the rear luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front centre luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the left-hand side C-pillar lower trim (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the left-hand section of the luggage compartment side box (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the receiver (see Receiver: Removal - Refitting) (86A, Radio).

II - REMOVAL OF PART CONCERNED

WARNING To avoid damaging the parking brake cable protectors and causing premature wear of the system, do not handle the cables with a tool.
  • For vehicles fitted with a manual gearbox: before removing the control unit, always save the clutch data (see Fault finding - Replacement of components) (37B, Electronic parking brake).

Electronic parking brake

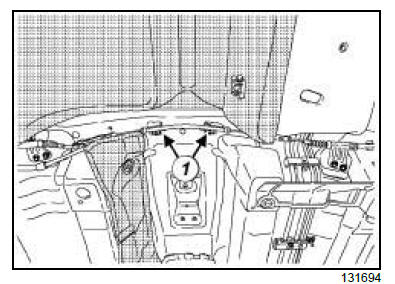

  • Remove the parking brake cable bolts (1) from the underbody.

Electronic parking brake

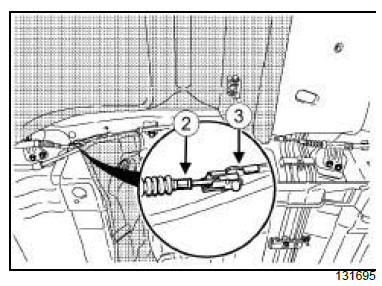

  • Disconnect the left-hand section (2) of the parking brake cable from its clip (3) .

Electronic parking brake

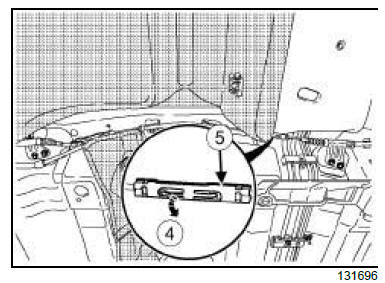

  • Lift up the stopper (4) .
  • Disconnect the right-side of the parking brake cable from its clip (5) .

Electronic parking brake

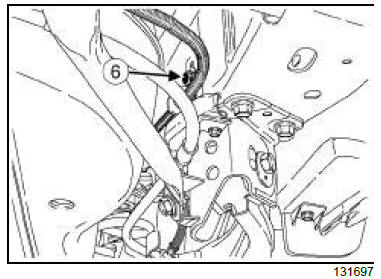

  • Remove the parking brake cable bolt (6) on the front-left side of the fuel tank.

Electronic parking brake

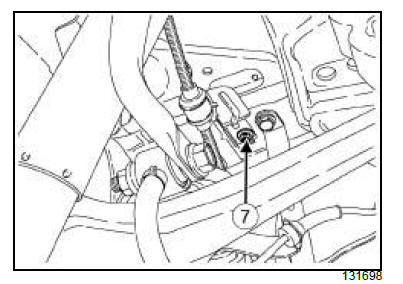

  • Remove the bolt of the electronic parking brake (7) on the rear left-hand face of the fuel tank.
  • Let the electronic parking brake cable hang freely.

Electronic parking brake

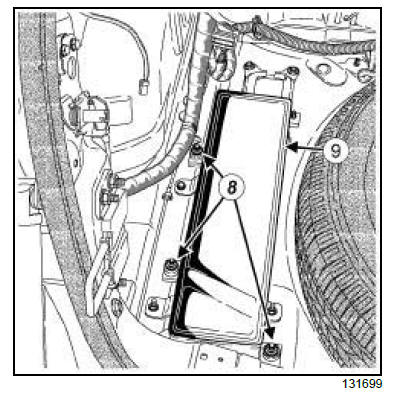

  • Remove:
    • the cover nuts (8) from the electronic parking brake control unit,
    • the cover (9) from the electronic parking brake control unit.

Electronic parking brake

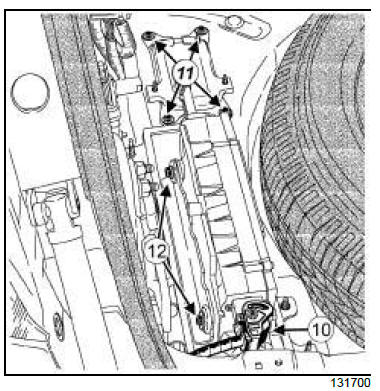

  • the connector (10) from the electronic parking brake control unit.
  • Remove:
    • the bolt (11) from the electronic parking brake cable support,
    • the electronic parking brake cable bracket,
    • the nuts (12) from the electronic parking brake control unit,
    • the electronic parking brake control unit - electronic parking brake cable assembly.
Note: The electronic parking brake cable cannot be separated from the electronic parking brake control unit.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the clip on the right-side of parking brake cable.

II - REFITTING PART CONCERNED

Electronic parking brake

  • Fit the electronic parking brake control unit - electronic parking brake cable assembly
  • Refit:
    • the nuts of the electronic parking brake control unit,
    • the electronic parking brake cable bracket,
    • the bolts on to the electronic parking brake cable bracket.

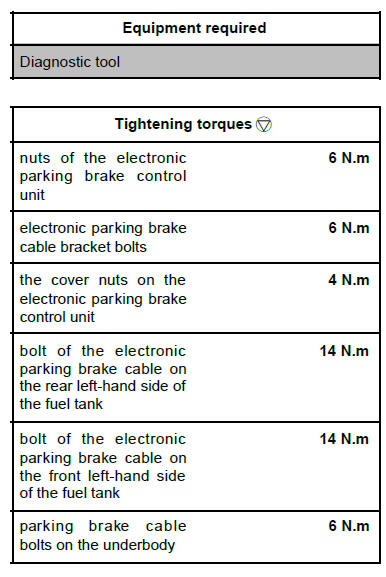

  • Tighten to torque:
    • the nuts of the electronic parking brake control unit (6 N.m),
    • the electronic parking brake cable bracket bolts (6 N.m).
  • Connect the connector to the electronic parking brake control unit.
  • Refit:
    • the cover on the electronic parking brake control unit.
    • the cover nuts on the electronic parking brake control unit.
  • Torque tighten the cover nuts on the electronic parking brake control unit (4 N.m).
  • Refit:
    • the left-side of the parking brake cable into its clip,
    • the right-side of the parking brake cable into its new clip,
    • the bolt of the electronic parking brake cable on the rear left-hand side of the fuel tank.
    • the bolt of the electronic parking brake bolt on the front left-hand side of the fuel tank.
    • the parking brake cable bolts on the underbody.
  • Tighten to torque:
    • the bolt of the electronic parking brake cable on the rear left-hand side of the fuel tank (14 N.m),
    • the bolt of the electronic parking brake cable on the front left-hand side of the fuel tank (14 N.m),
    • the parking brake cable bolts on the underbody (6 N.m).

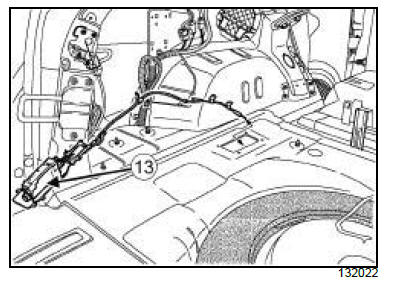

  • Observe the parking brake cable routing noted during removal.

III - FINAL OPERATION

  • Refit:
    • the receiver (see Receiver: Removal - Refitting) (86A, Radio).
    • the left-hand section of the luggage compartment side box (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the left-hand side C-pillar lower trim (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the front centre luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the rear luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front luggage compartment floor box (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the rear centre luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
  • With the ignition on, push the handle to release the electronic parking brake. Then pull the handle so that the automatic parking brake locking function is signalled by a sound and the play compensation is set automatically.
  • Carry out a complete check and clear any faults generated using the Diagnostic tool. Configure the new brake control unit see (Fault finding - Replacement of components).
