Steering assembly

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair (see Steering: Precautions for the repair) .



IMPORTANT To avoid any risk of triggering when working on or near a pyrotechnic component (airbags or pretensioners), lock the airbag computer using the diagnostic tool.

When this function is activated, all the trigger lines are inhibited and the airbag warning light on the instrument panel lights up continuously (ignition on).



IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.



IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 minutes after disconnecting the battery.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Unlock the steering column.
  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove the driver's front airbag (see Driver's frontal airbag: Removal - Refitting) (88C, Airbags and pretensioners).
  • Set the wheels straight ahead.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Steering assembly

  • Remove:

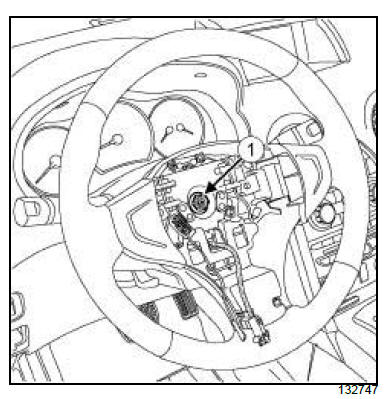

    • the steering wheel nut (1) ,
    • the steering wheel.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the steering wheel nut.

II - REFITTING OPERATION FOR PART CONCERNED

Steering assembly

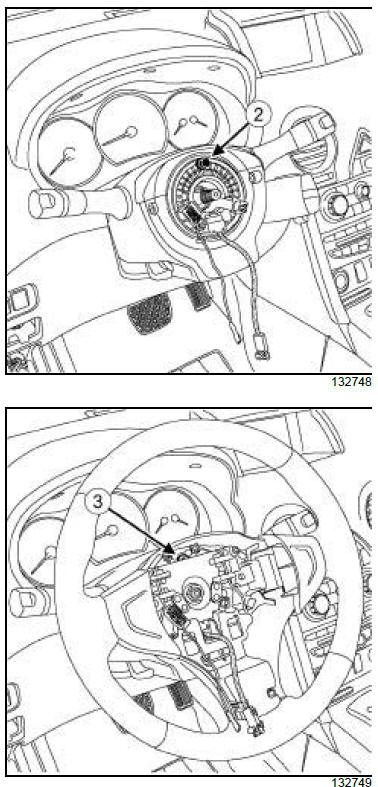

Note: When refitting the steering wheel, align the (2) of the rotary switch with the opening (3) in the steering wheel.
  • Pass the wiring connectors through the opening in the steering wheel.
  • Move the steering wheel to its original position.
  • Refit the new steering wheel nut.
  • Torque tighten the steering wheel nut (34 N.m).

III - FINAL OPERATION.

  • Refit the driver's front airbag (see Driver's frontal airbag: Removal - Refitting) (MR 415, 88C, Airbags and pretensioners).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Configure the steering wheel angle sensor (see Configurations and Programming (38C, Anti-lock braking system).
