Renault Koleos Service Repair Manual: Tyre pressure monitor computer: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Tyre pressure monitor / Tyre pressure monitor computer: Removal - Refitting

TYRE PRESSURE SENSOR

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the lower cover of the driver's side dashboard (see Dashboard: Removal - Refitting) (MR 393, 57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

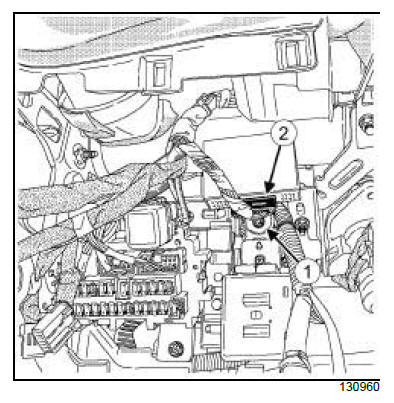

Tyre pressure monitor

  • Remove the bolt (1) .
  • Disconnect the connector (2) .
  • Remove the tyre pressure monitor computer.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the tyre pressure monitor computer.
  • Connect the connector.
  • Refit the tyre pressure monitor computer bolt.

II - FINAL OPERATION.

  • Refit the lower cover of the driver's side dashboard (see Dashboard: Removal - Refitting) (MR 393, 57A, Interior equipment).
    Tyre pressure monitor: List and location of components

    Tyre pressure monitor receiver: Removal - Refitting
