M9R

Front axle components

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres),
    • the engine undertray,
    • the front axle subframe (see 31A, Front axle components, Front axle subframe: Removal - Refitting, page 31A-58) .

II - REMOVAL OF THE PART CONCERNED

Front axle components

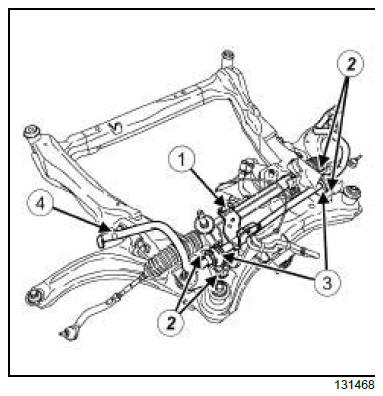

  • Remove:
    • the particle filter pressure sensor support (1) ,
    • the anti-roll bar bolts (2) ,
    • the anti-roll bar bearings (3) ,
    • the anti-roll bar (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the anti-roll bar,
    • the anti-roll bar bearings,
    • the anti-roll bar bolts,
    • the particle filter pressure sensor support.
  • Torque tighten the anti-roll bar bolts (34 N.m).

II - FINAL OPERATION

  • Refit:
    • the front axle sub-frame (see 31A, Front axle components, Front axle subframe: Removal - Refitting, page 31A-58) ,
    • the engine undertray,
    • the front wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).

2TR

Front axle components

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres),
    • the engine undertray,
    • the front axle subframe (see 31A, Front axle components, Front axle subframe: Removal - Refitting, page 31A-58) .

II - REMOVAL OF THE PART CONCERNED

Front axle components

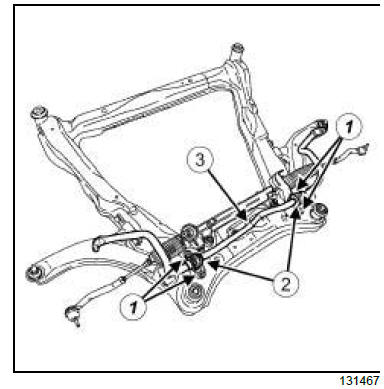

  • Remove:
    • the anti-roll bar bolts (1) ,
    • the anti-roll bar bearings (2) ,
    • the anti-roll bar (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the anti-roll bar,
    • the anti-roll bar bearings,
    • the anti-roll bar bolts.
  • Torque tighten the anti-roll bar bolts (34 N.m).

II - FINAL OPERATION

  • Refit:
    • the front axle sub-frame (see 31A, Front axle components, Front axle subframe: Removal - Refitting, page 31A-58) ,
    • the engine undertray,
    • the front wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).
