Renault Koleos Service Repair Manual: Front brake disc: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Front axle components / Front brake disc: Removal - Refitting

Note: Brake discs cannot be reground. If there is excessive scoring or wear, they will need to be replaced.

When replacing a brake disc, be sure to replace the disc on the opposite side.

When replacing brake discs, you must replace the brake pads.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres),
    • the front brake hose (see 31A, Front axle components, Front brake hose: Removal - Refitting, page 31A-3) .
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front brake calliper (see 31A, Front axle components, Front brake calliper: Removal - Refitting, page 31A-5) ,
    • the front brake calliper mounting (see 31A, Front axle components, Front brake calliper mounting: Removal - Refitting, page 31A-9) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front axle components

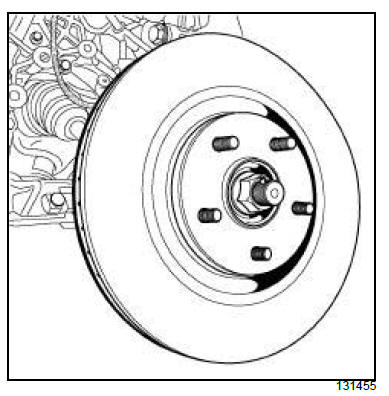

  • Remove the brake disc.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Clean the brake disc using brake cleaner.

II - REFITTING PART CONCERNED

  • Refit the brake disc.

III - FINAL OPERATION.

  • Refit:
    • the front brake calliper mounting (see 31A, Front axle components, Front brake calliper mounting: Removal - Refitting, page 31A-9) ,
    • the front brake calliper (see 31A, Front axle components, Front brake calliper: Removal - Refitting, page 31A-5) ,
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front brake hose (see 31A, Front axle components, Front brake hose: Removal - Refitting, page 31A-3) .
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
