REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres),
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) .

Front axle components

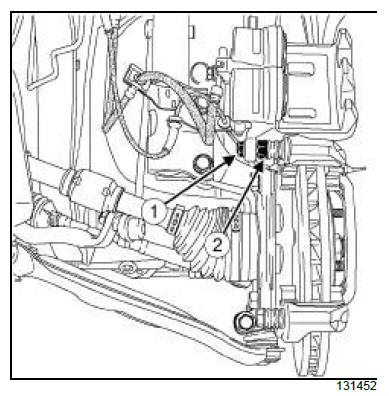

  • Remove the upper guide pin bolt (1) while holding the nut (2) .
WARNING In order to not damage the brake hose:
  • do not tension the hose,
  • do not twist the hose,
  • check that there is no contact with the surrounding components.
  • Suspend the brake calliper from the suspension spring.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front axle components

  • Remove:

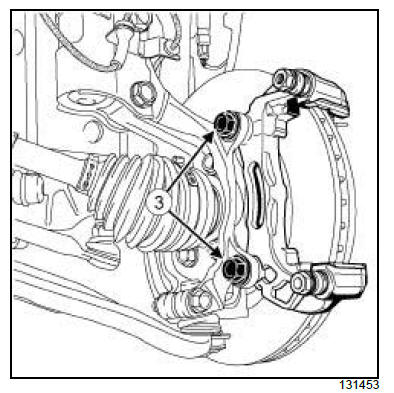

    • the calliper mounting bolts (3) ,
    • the calliper mounting.

I - REFITTING PREPARATION OPERATION

  • Always replace the upper guide pin bolt.
  • Clean:
    • the calliper mounting,
    • the hub carrier.
  • Coat the calliper mounting bolt with HIGH STRENGTH THREAD LOCK (see Vehicle: Parts and consumables for the repair) or a similar product before refitting.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the calliper mounting,
    • the calliper mounting bolts.

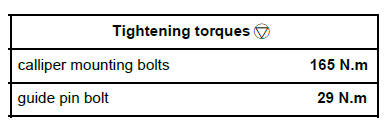

  • Torque tighten the calliper mounting bolts (165 N.m).
  • Refit:
    • the calliper,
    • the new upper guide pin bolt.
  • Torque tighten the guide pin bolt (29 N.m).

III - FINAL OPERATION.

  • Refit:
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
