Note: When replacing a brake pad, it is essential to replace the brake pad on the opposite side as well.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Unlock the steering column.
  • Remove the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front axle components

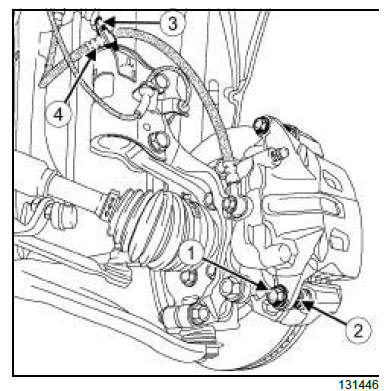

  • Remove the lower guide pin bolt (1) while holding the nut (2) .
  • Unclip:
    • the clip (3) ,
    • the brake hose (4) from the shock absorber.
  • Rotate the calliper upwards.
  • Remove the brake pad.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the guide pin bolt.
  • Check the brake pad thickness (see 30A, General information, Brake: Specifications, page 30A-7) (30A, General information).
  • Replace any faulty parts.
  • Clean:
    • the calliper,
    • the calliper mounting,
    • the calliper mounting bolts.

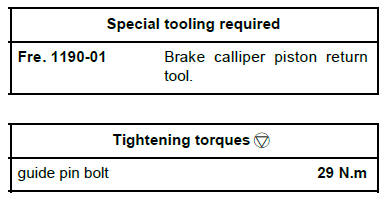

  • Push the piston fully into its housing using tool (Fre. 1190-01) part no. 77 11 223 715.
WARNING In order not to damage the brake hose:
  • do not tension the hose,
  • do not twist the hose,
  • check that there is no contact with the surrounding components.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the brake pad, starting from the inside.
  • Rotate the calliper downwards to return it to its original position.
  • Refit the new guide pin bolt.
  • Torque tighten the guide pin bolt (29 N.m).
  • Clip:
    • the brake hose to the shock absorber,
    • the clip.

III - FINAL OPERATION.

  • Refit the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
    Front axle components

    Front brake hose: Removal - Refitting
