FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the engine undertray.
  • Drain the cooling system (see Cooling system: Draining - Refilling) (19A, Cooling).
  • Remove:
    • the battery (see Battery: Removal - Refitting) (80A, Battery)
    • the battery tray (see Battery tray: Removal - Refitting) (80A, Battery),
    • the air inlet sleeve (see Air filter unit: Removal - Refitting) (12A, Fuel mixture).

Automatic gearbox

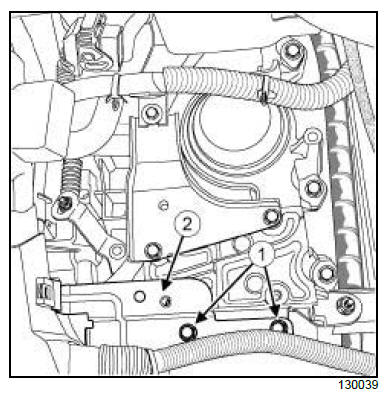

  • Remove the bolts (1) from the engine wiring harness channel.
  • Remove the wiring harness channel (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

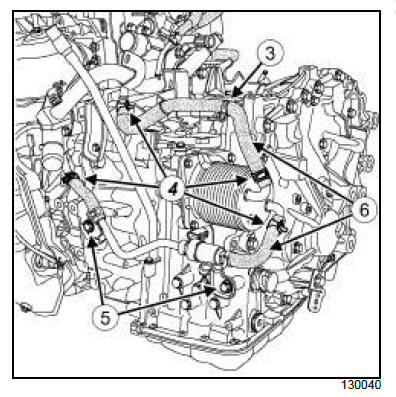

  • Unclip the cooling hose (3) .
  • Remove:
    •  the cooling hose clips (4) ,
    •  the cooling hose bolts (5) ,
    •  the cooling hoses (6) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the cooling hoses,
    • the cooling hose bolts,
    • the cooling hose clips.

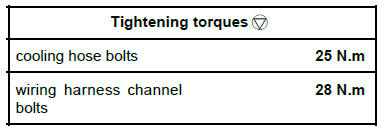

  • Torque tighten the cooling hose bolts (25 N.m).
  • Clip the cooling hose at (3) .

II - FINAL OPERATION.

  • Refit:
    • the wiring harness channel,
    • the engine wiring harness channel bolts.
  • Torque tighten the wiring harness channel bolts (28 N.m).
  • Refit:
    • the air inlet sleeve (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),
    • the battery tray (see Battery tray: Removal - Refitting) (80A, Battery),
    • the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Fill the cooling circuit (see Cooling system: Draining - Refilling) (19A, Cooling).
  • Refit the engine undertray.
