2TR, and 6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the battery
    • the battery tray

Manual gearbox

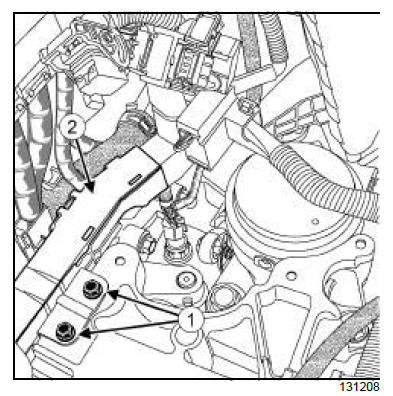

  • Remove the bolts (1) from the wiring bracket.
  • Move aside the wiring bracket (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Manual gearbox

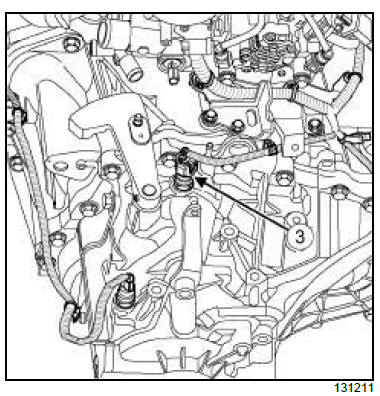

  • Disconnect the connector (3) from the reverse gear switch.
  • Remove the reverse gear switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the reverse gear switch (blue) coated with RESIN ADHESIVE.
  • Torque tighten the reverse gear switch (28 N.m).
  • Connect the reverse gear switch connector.

II - FINAL OPERATION.

  • Refit:
    • the wiring bracket,
    • the wiring bracket bolts.
  • Torque tighten the wiring bracket bolts (28 N.m).
  • Refit:
    • the battery tray
    • the battery

M9R, and 6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

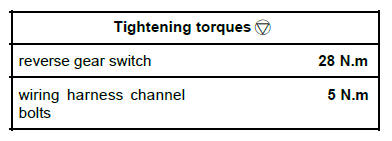

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the air inlet sleeve
    • the battery
    • the battery tray.

Manual gearbox

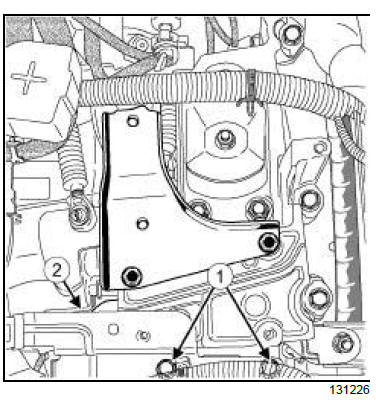

  • Remove the bolts (1) from the engine wiring harness channel.
  • Move aside the wiring harness channel (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Manual gearbox

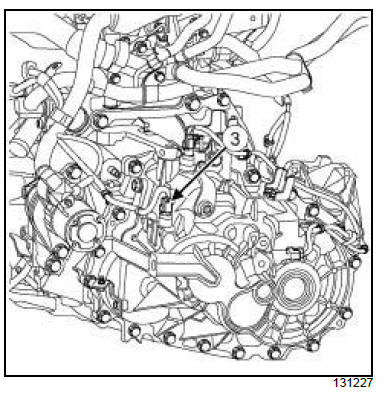

  • Disconnect the connector (3) from the reverse gear switch.
  • Remove the reverse gear switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the reverse gear switch (blue) smeared with RESIN ADHESIVE.
  • Torque tighten the reverse gear switch (28 N.m).
  • Connect the reverse gear switch connector.

II - FINAL OPERATION.

  • Refit:
    • the engine wiring harness channel,
    • the engine wiring harness channel bolts.
  • Torque tighten the wiring harness channel bolts (5 N.m).
  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve.
