Renault Koleos Service Repair Manual: Manual gearbox oils: Draining - Filling

Renault Koleos Service Repair Manual / Transmission / Manual gearbox / Manual gearbox oils: Draining - Filling

6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

CAPACITY

DRAINING

I - DRAINING PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the engine undertray.

II - DRAINING OPERATION

Manual gearbox

  • Remove:

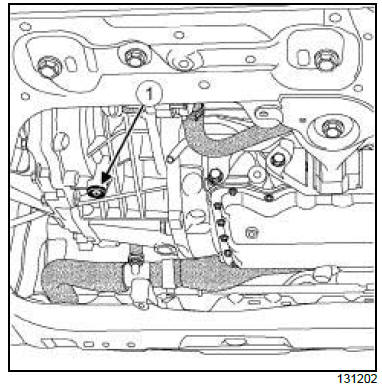

    • the drain plug (1) ,
    • the drain plug seal.
  • Drain the manual gearbox.

FILLING

  • Always replace the drain plug seal.
  • Refit:
    • new seal on the drain plug,
    • the drain plug.

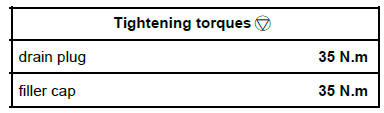

  • Torque tighten the drain plug (35 N.m).
  • Remove:
    • the front left-hand wheel
    • the front left-hand splash guard

Manual gearbox

  • Remove:

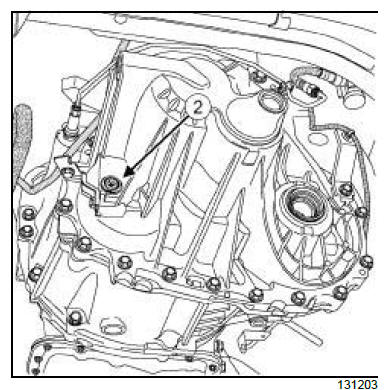

    • the filler cap (2) ,
    • the filler cap seal.

Manual gearbox

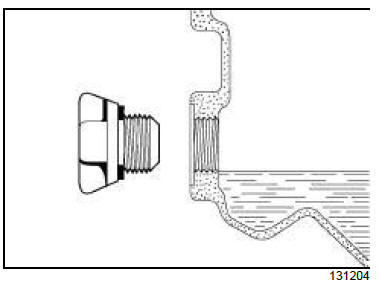

  • Fill up to the level of the opening.
  • Refit:
    • the new filler cap seal,
    • the filler cap.
  • Torque tighten the filler cap (35 N.m).
  • Refit:
    • the front left-hand splash guard
    • the front left-hand wheel
    • the engine undertray.
