Renault Koleos Service Repair Manual: 2TR, and FK0 or FK8

Engine mounting

IMPORTANT Wear protective gloves during the operation.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the engine cover
    • the air resonator located on the rocker cover
    • the air inlet sleeve
    • the battery
    • the battery tray.

Engine mounting

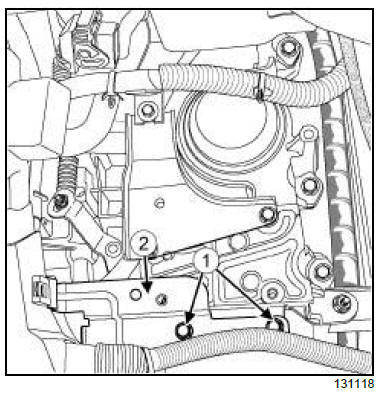

  • Remove the bolts (1) from the wiring bracket.
  • Move aside the wiring and bracket (2) .

Engine mounting

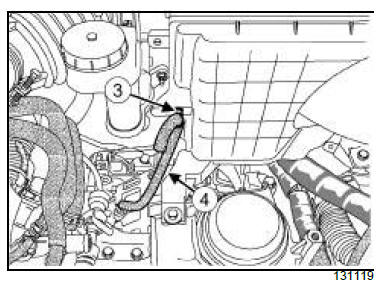

  • Unclip the breather hose clip (3) .
  • Remove:
    • the breather hose (4) ,
    • the air filter box.

Engine mounting

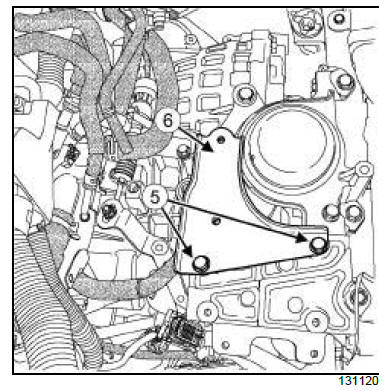

  • Remove:
    • the bolts (5) from the bracket,
    • the bracket (6) .

Engine mounting

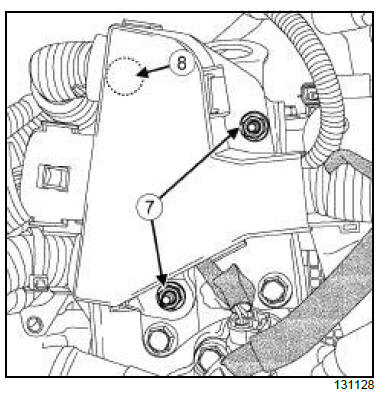

  • Remove:
    • the engine wiring bracket nuts (7) ,
    • the engine wiring bracket bolt (8) .
  • Move the engine wiring to one side.

Engine mounting

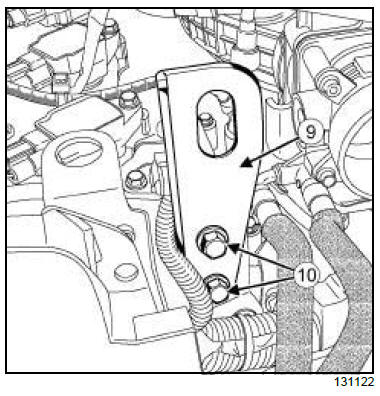

  • Refit:
    • the lifting eye (9) ,
    • the lifting eye bolts (10) .

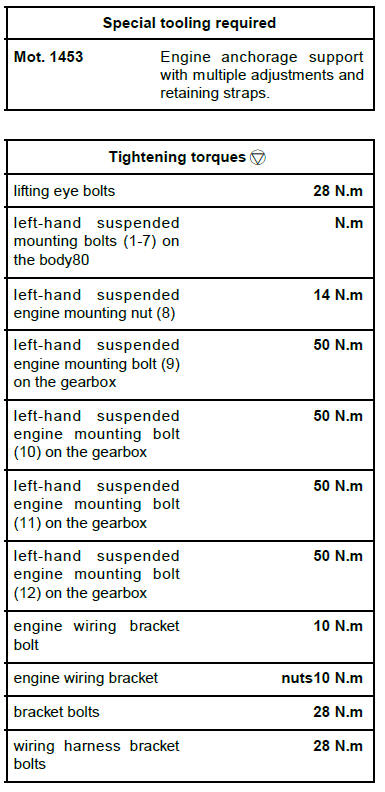

  • Torque tighten the lifting eye bolts (28 N.m).
  • Remove the scuttle half-grilles.

Engine mounting

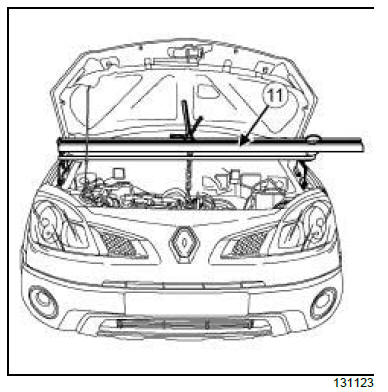

  • Position the (Mot. 1453) (11) .
  • Remove:
    • the front left-hand wheel
    • the front right-hand splash guard
    • the front left-hand wheel arch liner

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine mounting

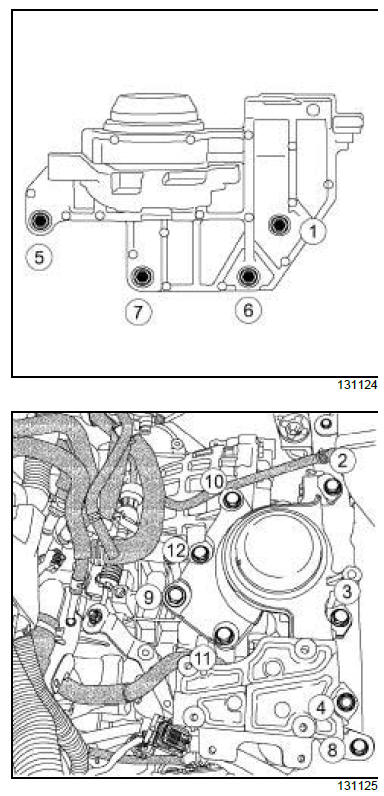

  • Remove in the following order:
    • the left-hand suspended engine mounting bolt (1) from the gearbox,
    • the left-hand suspended engine mounting bolt (2) from the gearbox,
    • the left-hand suspended engine mounting bolt (3) from the gearbox,
    • the left-hand suspended engine mounting bolt (4) from the gearbox,
    • the left-hand suspended engine mounting nut (5) ,
    • bolts (6-12) from the left-hand suspended engine mounting on the body.
  • Remove the left-hand suspended engine mounting .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Engine mounting

  • Refit the left-hand suspended engine mounting on the body.
  • Refit the bolts of the left-hand suspended engine mounting on the body and on the gearbox.

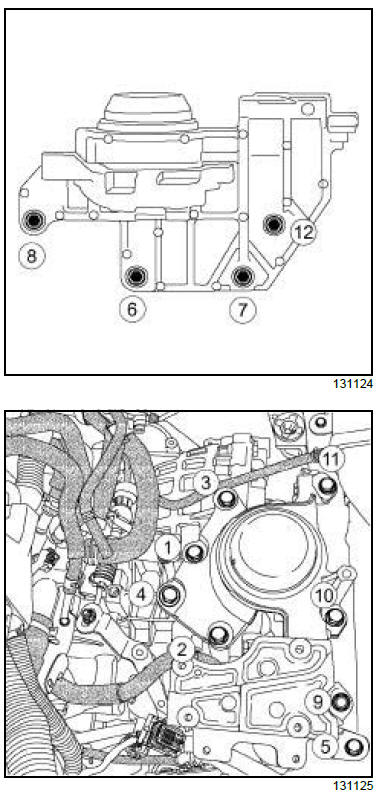

  • Torque tighten in turn:
    • the left-hand suspended mounting bolts (1-7) on the body80 (N.m),
    • the left-hand suspended engine mounting nut (8) (14 N.m),
    • the left-hand suspended engine mounting bolt (9) on the gearbox (50 N.m),
    • the left-hand suspended engine mounting bolt (10) on the gearbox (50 N.m),
    • the left-hand suspended engine mounting bolt (11) on the gearbox (50 N.m),
    • the left-hand suspended engine mounting bolt (12) on the gearbox (50 N.m).

II - FINAL OPERATION.

  • Refit:
    • the front left-hand wheel arch liner
    • the front right-hand splash guard
    • the front left-hand wheel
  • Remove:
    • tool (Mot. 1453)
    • the lifting eye bolts,
    • the lifting eye.
  • Refit:
    • the engine wiring bracket bolt
    • the engine wiring bracket nuts
    • the scuttle half-grilles
    • the bracket (6)
    • the bracket bolts (6) .
  • Torque tighten:
    • the engine wiring bracket bolt (10 N.m),
    • The engine wiring bracket (nuts10 N.m),
    • the bracket bolts (28 N.m).
  • Refit:
    • the air filter box
    • the breather hose.
  • Clip on the breather hose clip.
  • Refit:
    • the wiring harness bracket,
    • the wiring harness bracket bolts.
  • Torque tighten the wiring harness bracket bolts (28 N.m).
  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve
    • the air resonator located on the rocker cover
    • the engine cover.
