Renault Koleos Owners Manual: Attachment by seat belt

Attachment by seat belt

RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that the airbag has been deactivated.



Using a child safety system which is not approved for this vehicle will not correctly protect the baby or child.

They risk serious or even fatal injury.

Check the status of the airbag before fitting a child seat or allowing a passenger to use the seat.

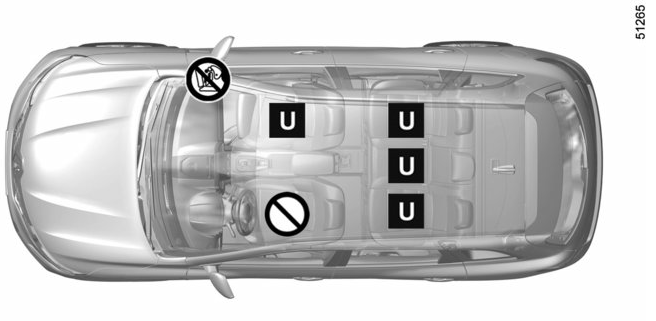

Seat not suitable for fitting child seats.

Child seat attached using the belt

Seat which allows a child seat with "Universal" approval to be attached by a seat belt.

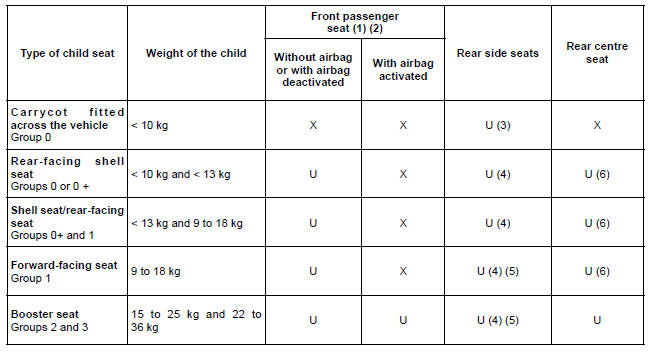

The table below summarises the information already shown on the diagram on the previous page, to ensure the applicable regulations are respected.

Attachment by seat belt

(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that the airbag has been deactivated.

X = Seat not suitable for fitting child seats of this type.

U = Seat which allows a child seat with "Universal" approval to be installed using a seat belt; check that it can be fitted.

(2) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25º).

(3) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest the door.

(4) Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat and the child's legs.

(5) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat.

(6) RISK OF DEATH OR SERIOUS INJURY: A child seat with a support leg must never be fitted.
    Child seats

    Attachment using the ISOFIX system
