Tank

IMPORTANT Wear goggles with side protectors for this operation.



IMPORTANT Wear protective gloves during the operation.



IMPORTANT During this operation, be sure to:
  • refrain from smoking or bringing red hot objects close to the working area,
  • be careful of fuel splashes when disconnecting the union.



WARNING To avoid any corrosion or damage, protect the areas on which fuel is likely to run.



WARNING Keep the pipe unions away from contaminated areas.

REMOVAL

I - OPERATION FOR REMOVAL OF PART CONCERNED

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Drain the fuel tank.
  • Remove:
    • the rear right-hand wheel
    • the rear right-hand wheel arch liner.

Tank

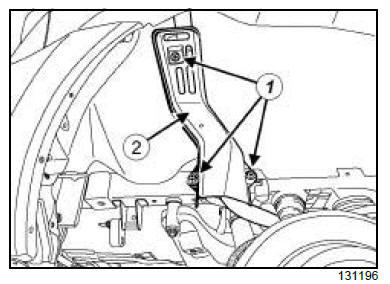

  • Remove:
    • the clips (1)
    • the fuel filler neck protector (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Tank

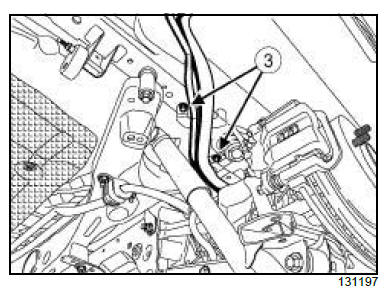

  • Remove the fuel filler neck bolts (3) .

Tank

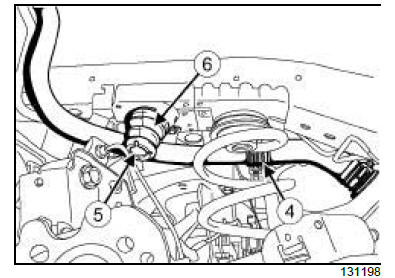

  • Remove:
    • the fuel filler neck bracket (4) ,
    • the retaining bracket bolt (5) ,
    • the retaining bracket (6) .

Tank

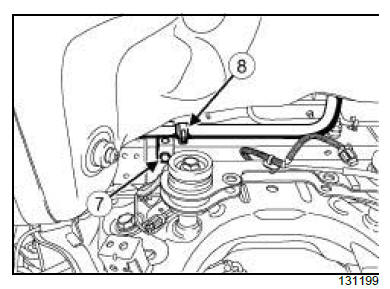

  • Remove:
    • the breather pipe bolt (7) ,
    • the breather pipe bracket (8) .
  • Disconnect the breather pipe.

Tank

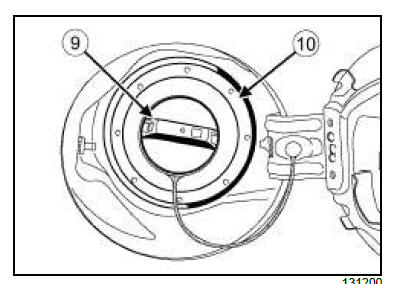

  • Remove:
    • the cap (9) ,
    • the filler neck flange (10) ,
    • the filler neck.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace:
    • the clips,
    • the fuel filler neck bracket,
    • the breather pipe bracket.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the filler neck,
    • the filler neck flange,
    • the filler neck plug.
  • Connect the breather pipe.
  • Refit:
    • the new breather pipe bracket,
    • the breather pipe bolt.

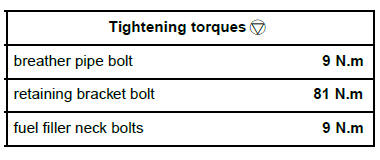

  • Torque tighten the breather pipe bolt (9 N.m).
  • Refit:
    • the retaining bracket (6) ,
    • the retaining bracket bolt.
  • Torque tighten the retaining bracket bolt (81 N.m).
  • Refit:
    • the new fuel filler neck bracket,
    • the fuel filler neck bolts.
  • Torque tighten the fuel filler neck bolts (9 N.m).

III - FINAL OPERATION.

  • Refit:
    • the fuel filler neck protector,
    • the new clips,
    • the rear right-hand wheel arch liner.
    • the rear right-hand wheel.
  • Connect the battery.
