Renault Koleos Service Repair Manual: Coolant pump: Removal - Refitting

M9R

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the " engine - gearbox assembly " .

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Remove the coolant pump.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the coolant pump.

II - FINAL OPERATION.

  • Refit the " engine and gearbox " assembly.

2TR

Cooling

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair .



IMPORTANT Wear protective gloves during the operation.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Disconnect the battery.
  • Remove the engine undertray.
  • Drain the cooling system.
  • Remove:
    • the front right-hand wheel
    • the front right-hand splash guard
    • the front right-hand wheel arch liner
    • the accessories belt
    • the fixed roller
    • the auto tensioner
    • the screen washer bottle filler neck
    • the alternator.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Cooling

  • Remove:

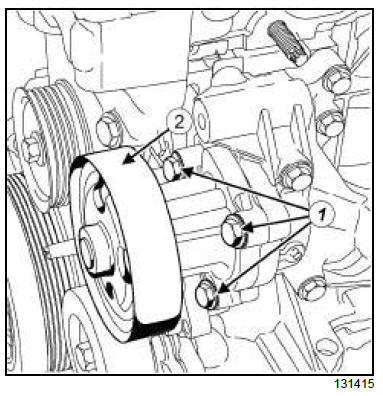

    • the coolant pump bolts (1) ,
    • the coolant pump (2) ,
    • the coolant pump seal.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the seals.
  • Clean the surface of the coolant pump seal using SURFACE CLEANER.
  • Apply RESIN ADHESIVE.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the new seal on the coolant pump,
    • the coolant pump,
    • the coolant pump bolts.
  • Torque tighten the coolant pump bolts (25 N.m).

III - FINAL OPERATION.

  • Refit:
    • the alternator
    • the screen washer bottle filler neck
    • the auto tensioner
    • the fixed roller
    • the accessories belt
    • the front right-hand wheel arch liner
    • the front right-hand splash guard
    • the front right-hand wheel .
  • Fill the cooling system .
  • Refit the engine undertray.
  • Connect the battery.
  • Bleed the cooling system.
    Cooling radiator: Removal - Refitting

    Thermostat: Removal - Refitting
