Renault Koleos Service Repair Manual: Engine cooling system: Specifications

Renault Koleos Service Repair Manual / Engine and peripherals / Cooling / Engine cooling system: Specifications

Vehicles in the current range have cooling systems with the following specifications:

  • hermetically-sealed pressurised circuit (expansion chamber valve),
  • circuit using type D coolant,
  • passenger compartment heating system equipped with a "heater matrix" type radiator located under the dashboard, which helps to cool the engine.

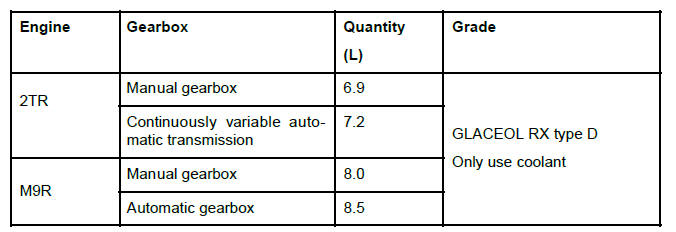

Volume of coolant

Cooling

Special notes:

  • protection down to - 25ºC +- 2 for cold and temperate countries,
  • protection down to - 40ºC +- 2 "extreme cold" countries.

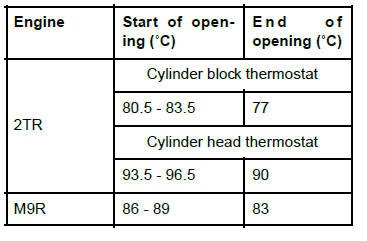

Thermostat opening temperatures

Cooling

    Engine cooling: Parts and consumables for the repair

    Engine cooling system: Check
