Renault Koleos Service Repair Manual: Diesel injection computer: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Diesel injection / Diesel injection computer: Removal - Refitting

M9R

Diesel injection

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REFITTING PREPARATION OPERATION

  • Before replacing the diesel injection computer, save the injection computer data using the Diagnostic tool according to command scenario SC003.

Diesel injection

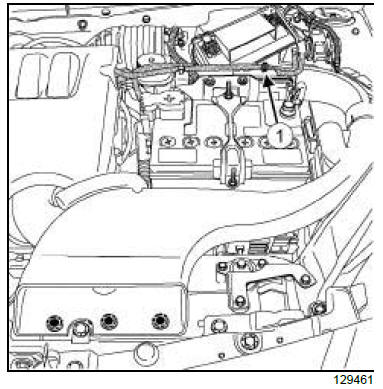

  • Unclip the control pipe (1) of the turbocharger pressure regulator valve on the diesel injection computer.
  • Remove the battery.
  • Disconnect the injection computer connector.
  • Remove the battery tray.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Diesel injection

  • Remove:

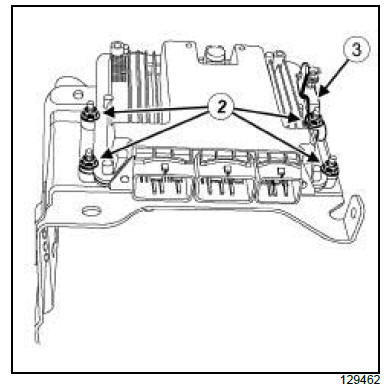

    • the diesel injection computer nuts (2) ,
    • the support (3) from the control pipe of the turbocharger pressure regulator valve on the diesel injection computer,
    • the diesel injection computer.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the diesel injection computer,
    • the support of the turbocharger pressure regulator valve control pipe on the diesel injection computer,
    • the diesel injection computer nuts.

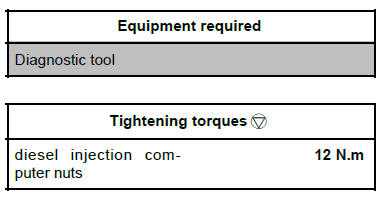

  • Torque tighten the diesel injection computer nuts (12 N.m).

II - FINAL OPERATION.

  • Refit the battery tray.
  • Connect the diesel injection computer connector.
  • Refit the battery.
  • Clip the control pipe of the turbocharger pressure regulator valve on the support.
  • Connect the Diagnostic tool
  • After replacing the diesel injection computer, save the injection computer data using the Diagnostic tool according to command scenario SC001.
