Renault Koleos Service Repair Manual: Throttle valve: Removal - Refitting

2TR

Fuel mixture

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove the engine cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

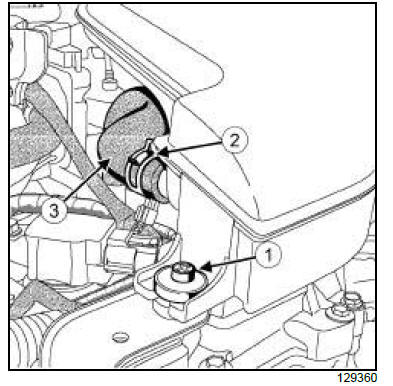

  • Remove:
    • the bolt (1) from the air resonator,
    • the breather hose clip (2) .
  • Disconnect the breather hose (3) .

Fuel mixture

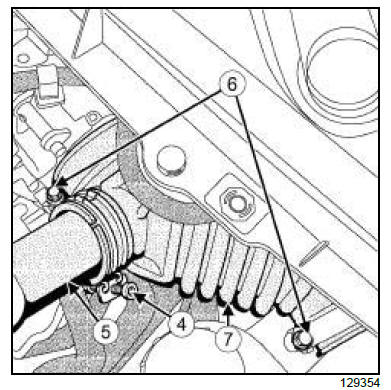

  • Loosen the clip (4) .
  • Remove the air resonator (5) on the rocker cover.
  • Loosen the air inlet pipe clips (6) .
  • Remove the air inlet pipe (7) .

Fuel mixture

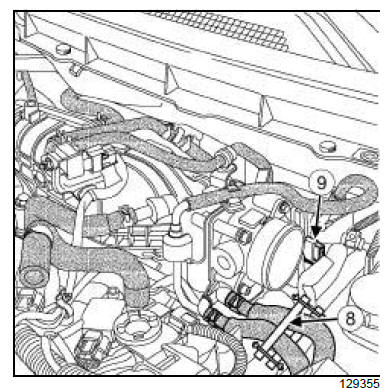

  • Fit the hose clamp (8) on the motorised throttle valve coolant pipes.
  • Remove the motorised throttle valve coolant pipe clips using the tool (Mot. 1448).
  • Disconnect:
    • the motorised throttle valve coolant pipes,
    • the motorised throttle valve connector (9) .

Fuel mixture

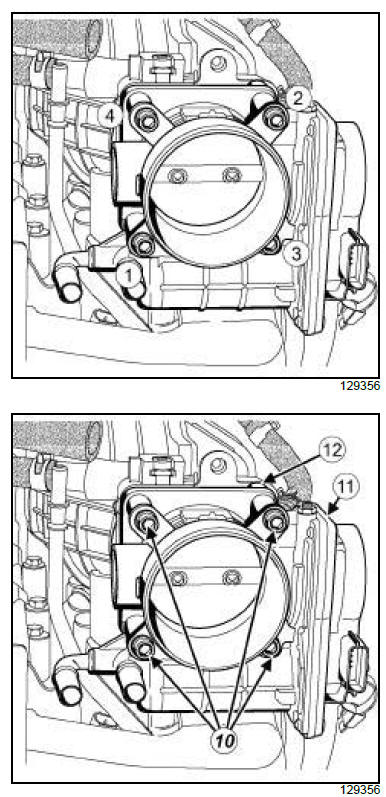

  • Remove:
    • in order the motorised throttle valve bolts (10) ,
    • the motorised throttle valve (11) ,
    • the motorised throttle valve seal (12) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the motorised throttle valve seal.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the motorised throttle valve seal,
    • the motorised throttle valve,
    • the motorised throttle valve bolts.

Fuel mixture

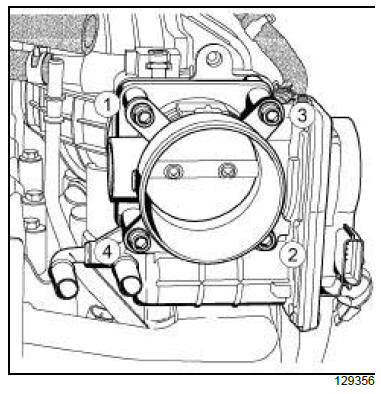

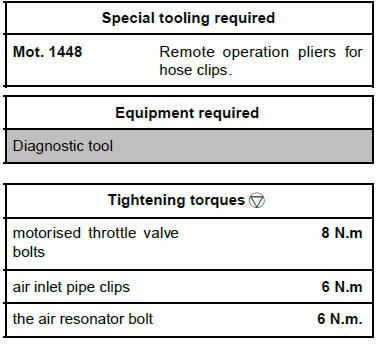

  • Torque tighten in order the motorised throttle valve bolts (8 N.m).
  • Connect:
    • the motorised throttle valve connector ,
    • the motorised throttle valve coolant pipes.
  • Refit the motorised throttle valve coolant pipe clips using the tool (Mot. 1448).
  • Remove the hose clamp from the motorised throttle valve coolant pipes.
  • Refit the air inlet pipe.
  • Tighten the air inlet pipe clips (6 N.m).
  • Refit the air resonator on the rocker cover.
  • Tighten the clip (4) .
  • Connect the breather hose (3) .
  • Refit:
    • the breather hose clip,
    • the air resonator bolt on the rocker cover.
  • Torque tighten the air resonator bolt (6 N.m.)

III - FINAL OPERATION

  • Refit the engine cover.
  • Connect the battery.
  • Carry out the programming of the motorised throttle valve using the Diagnostic tool.
  • Carry out the following if necessary:
    • top up the cooling system
    • bleed the cooling system.
