Renault Koleos Service Repair Manual: Air filter unit: Removal - Refitting

M9R

Fuel mixture

REMOVAL

I - REMOVAL PREPARATION OPERATION

Fuel mixture

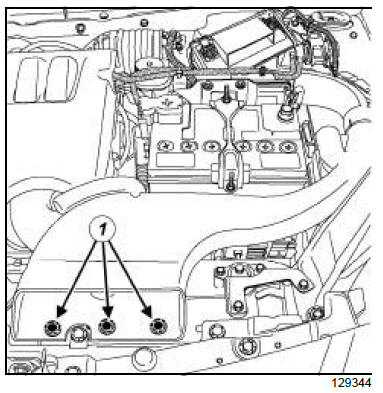

  • Remove:
    • the air inlet sleeve clips (1)
    • the air inlet sleeve from the air filter unit
    • the battery
    • the battery tray.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

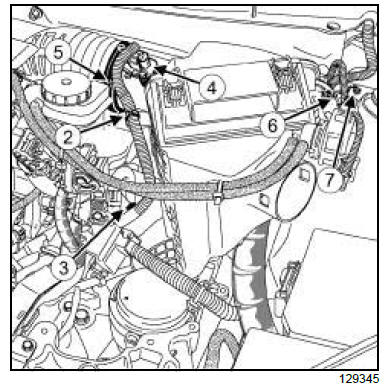

  • Unclip:
    • the air filter unit wiring clip (2) ,
    • the gearbox breather hose clip (3) from the air filter unit.
  • Remove the air flowmeter (4).
  • Loosen the air filter unit air outlet duct clip (5) on the air filter unit side.
  • Disconnect the air outlet duct from the air filter unit.
  • Remove:
    • the wiring clip bolt (6) ,
    • the air filter unit nut (7) ,
    • the air filter unit.

REFITTING

I - OPERATION FOR REMOVAL OF PART CONCERNED

  • Refit:
    • the air filter unit,
    • the air filter unit nut,
    • the wiring clip bolt.

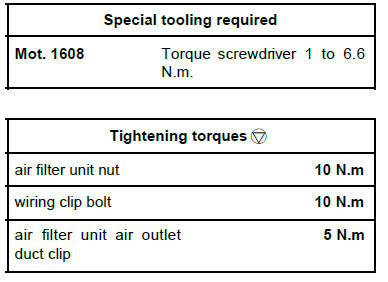

  • Tighten to torque:
    • the air filter unit nut (10 N.m),
    • the wiring clip bolt (10 N.m).
  • Connect the air outlet duct to the air filter unit.
  • Torque tighten the air filter unit air outlet duct clip (5 N.m) using the tool (Mot. 1608).
  • Refit the air flowmeter.
  • Clip:
    • the gearbox breather hose clip on the air filter unit,
    • the air filter unit wiring clip.

II - FINAL OPERATION

  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve on the air filter unit
    • the air inlet sleeve clips.

2TR

Fuel mixture

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.

Fuel mixture

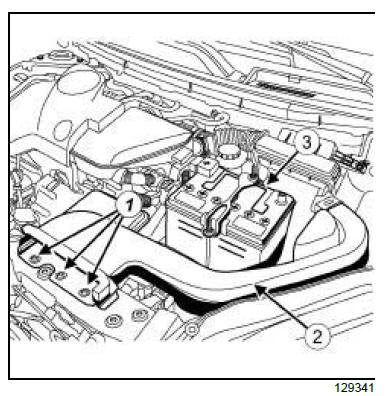

  • Unclip the air inlet sleeve clips (1) .
  • Remove:
    • the air inlet sleeve (2)
    • the battery (3)
    • the battery tray

II - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

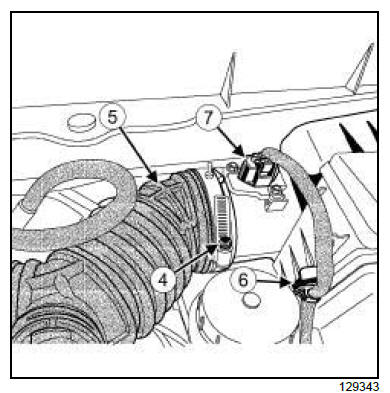

  • Loosen the air inlet duct clip (4) .
  • Disconnect the air inlet duct (5) from the air filter unit.
  • Unclip the wiring clip at (6) .
  • Disconnect the air flowmeter connector (7) .

Fuel mixture

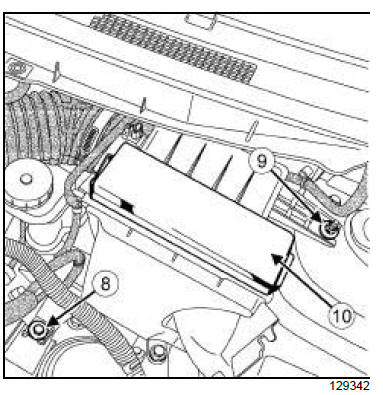

  • Remove:
    • the air filter unit bolt (8) ,
    • the air filter unit nut (9) ,
    • the air filter unit (10) .
Note: If necessary, remove the air flowmeter.

REFITTING

I - REFITTING PREPARATION OPERATION

Note: If replacing the air filter unit, refit the air flowmeter.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the air filter unit,
    • the air filter unit nut,
    • the air filter unit bolt.

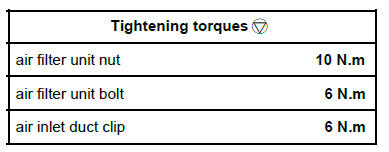

  • Torque tighten:
    • the air filter unit nut (10 N.m),
    • the air filter unit bolt (6 N.m)
  • Connect the air flowmeter connector.
  • Clip on the wiring clip.
  • Connect the air inlet duct to the air filter unit.
  • Torque tighten the air inlet duct clip (6 N.m).

III - FINAL OPERATION.

  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve.
  • Clip on the air inlet sleeve clips.
