M9R

Top and front of engine

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Remove:
    • the front right-hand wheel
    • the front right-hand wheel arch liner
    • the accessories belt

II - OPERATION FOR REMOVAL OF PART CONCERNED

Top and front of engine

  • Remove:

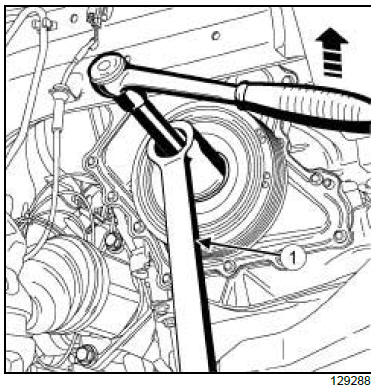

    • the crankshaft accessories pulley bolt using the (Mot. 1770) (1) ,
    • the spacer,
    • the crankshaft accessories pulley.

REFITTING

I - REFITTING PREPARATION OPERATION

WARNING Only use brushes with plastic or non-corrosive metal (brass) bristles.



WARNING Do not run the engine without the accessories belt to avoid damaging the crankshaft accessories pulley.
  • In case of reuse, clean the crankshaft accessories pulley V-grooves using a brush to get rid of any deposits.
  • The crankshaft accessories pulley bolt must always be replaced with a new one.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the crankshaft accessories pulley by inserting it into the two crankshaft flat surfaces,
    • the spacer,
    • the new crankshaft accessories pulley bolt fitted with a washer.
  • Position the (Mot. 1770).

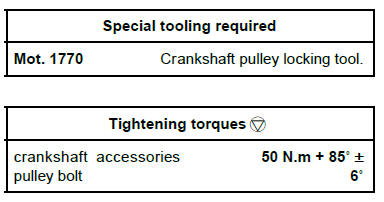

  • Torque tighten the crankshaft accessories pulley bolt (50 N.m + 85º +- 6º).

III - FINAL OPERATION.

  • Refit:
    • the accessories belt
    • the front right-hand wheel arch liner
    • the front right-hand wheel

2TR

Top and front of engine

IMPORTANT Wear protective gloves during the operation.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the front right-hand wheel
    • the front right-hand splash guard
    • the front right-hand wheel arch liner
    • the accessories belt

II - OPERATION FOR REMOVAL OF PART CONCERNED

Top and front of engine

Note: This operation requires two people.

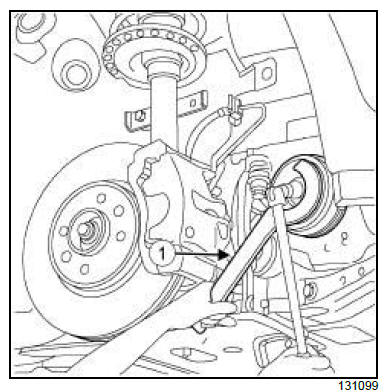

  • Loosen the crankshaft accessories pulley bolt using the tool (Mot. 1878) (1)
  • Remove the crankshaft accessories pulley using a two-claw extractor for inside grip.

REFITTING

I - REFITTING PREPARATION OPERATION

  • The crankshaft accessories pulley bolt must always be replaced with a new one.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the crankshaft accessories pulley,
    • the new crankshaft accessories pulley bolt.
Note: This operation requires two people.

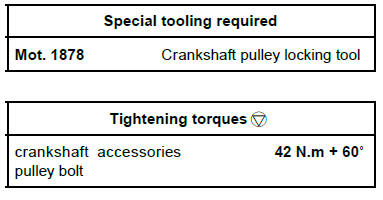

  • Torque and angle tighten the crankshaft accessories pulley bolt (42 N.m + 60º) using the tool (Mot.1878).

III - FINAL OPERATION.

  • Refit:
    • the accessories belt
    • the front right-hand wheel arch liner
    • the front right-hand splash guard
    • the front right-hand wheel
    Accessories belt: Removal - Refitting
