Renault Koleos Service Repair Manual: Multifunction support: Removal - Refitting

M9R

Engine and cylinder block assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove the engine cover.

Engine and cylinder block assembly

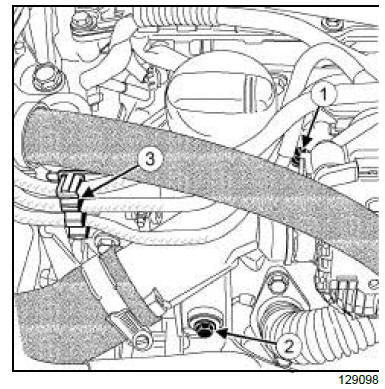

  • Loosen the clip (1) on the intercooler air outlet pipe.
  • Remove the intercooler air outlet pipe bolt (2) .
  • Disconnect the intercooler air outlet pipe from the damper valve.
  • Move the intercooler air outlet pipe to one side.
  • Unclip the fuel pipe from the support (3) .

Engine and cylinder block assembly

  • Remove:

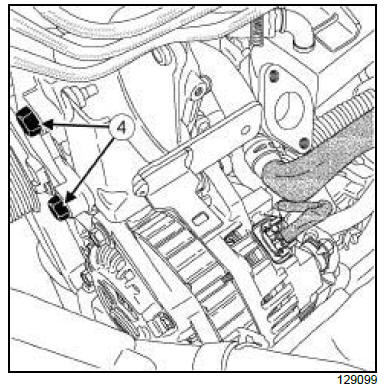

    • the bolts (4) of the expansion bottle pipe support,
    • the support of the expansion bottle pipe,
    • the engine undertray,
    • the front right-hand wheel ,
    • the front right-hand wheel arch liner,
    • the accessories belt,
    • the alternator.

AIR CONDITIONING 01 or AIR CONDITIONING 02

Engine and cylinder block assembly

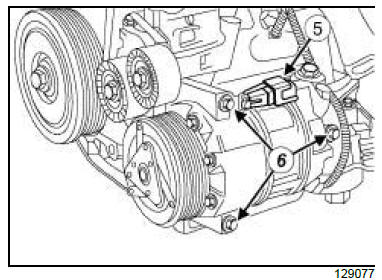

  • Disconnect the connector (5) from the air conditioning compressor.
  • Remove the bolts (6) from the air conditioning compressor.
  • Move aside the air conditioning compressor.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

  • Remove:

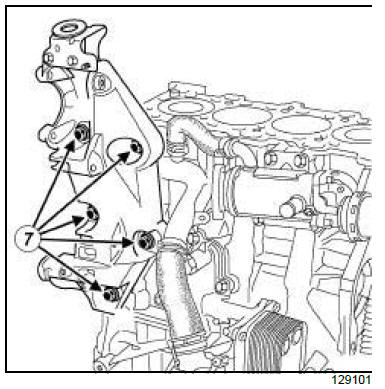

    • the multifunction support bolts (7) ,
    • the multifunction support.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Engine and cylinder block assembly

  • Position the multifunction support.

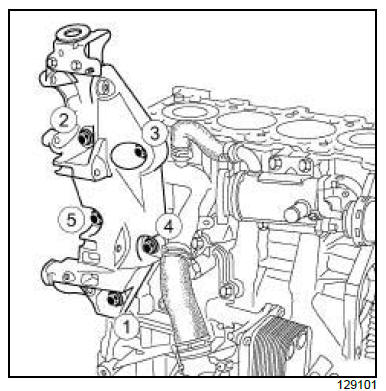

  • Without tightening, refit in order the bolts of the multifunction support.

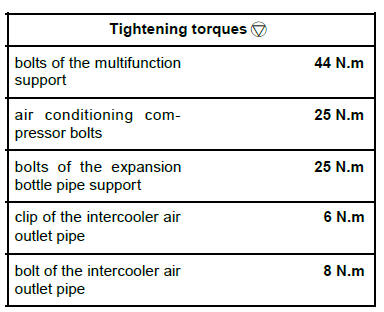

  • Torque tighten in order the bolts of the multifunction support (44 N.m).

II - FINAL OPERATION

AIR CONDITIONING 01 or AIR CONDITIONING 02

  • Fit the air conditioning compressor.
  • Refit the air conditioning compressor bolts.
  • Torque tighten the air conditioning compressor bolts (25 N.m).
  • Connect the air conditioning compressor connector.



  • Refit:
    • the alternator,
    • the accessories belt,
    • the front right-hand wheel arch liner, - the front right-hand wheel, - the engine undertray, - the support of the expansion bottle pipe, - the bolts of the expansion bottle pipe support.
  • Torque tighten the bolts of the expansion bottle pipe support (25 N.m).
  • Clip the fuel pipe onto the support.
  • Connect the intercooler air outlet pipe to the damper valve.
  • Torque tighten the clip of the intercooler air outlet pipe (6 N.m).
  • Refit the intercooler air outlet pipe bolt.
  • Torque tighten the bolt of the intercooler air outlet pipe (8 N.m).
  • Refit the engine cover.
  • Connect the battery .
