Renault Koleos Service Repair Manual: Oil level sensor: Removal - Refitting

M9R

Engine and cylinder block assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift
  • Remove:
    • the front right-hand wheel
    • the front right-hand wheel arch liner

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

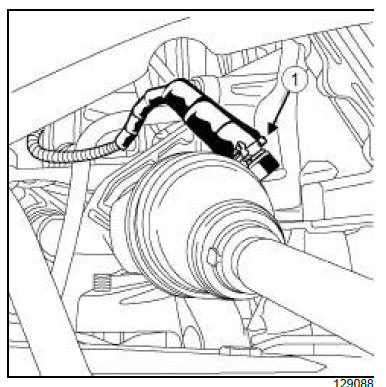

  • Disconnect the oil level sensor connector (1) .
  • Remove the oil level sensor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the oil level sensor.
  • Torque tighten the oil level sensor (20 N.m).
  • Connect the oil level sensor connector.

II - FINAL OPERATION.

  • Refit:
    • the front right-hand wheel arch liner
    • the front right-hand wheel

2TR

Engine and cylinder block assembly

IMPORTANT

Wear protective gloves during the operation.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift
  • Remove the engine undertray.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

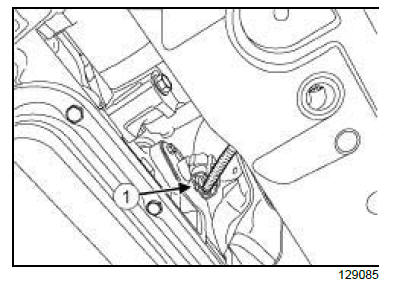

  • Disconnect the oil level sensor connector (1) .

Engine and cylinder block assembly

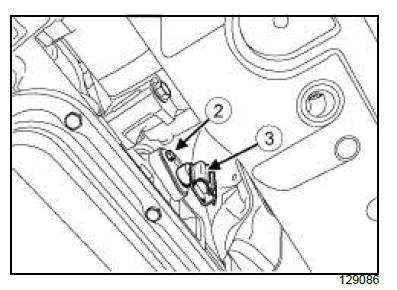

  • Remove:
    • the oil level sensor bolt (2) ,
    • the oil level sensor (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the oil level sensor,
    • the oil level sensor bolt.
  • Torque tighten the oil level sensor bolt (6 N.m).
  • Connect the oil level sensor connector.

II - FINAL OPERATION

  • Refit the engine undertray.
