COMBINATIONS FOR REPLACING WELDED STRUCTURAL PARTS IN ACCORDANCE WITH IMPACT SUSTAINED

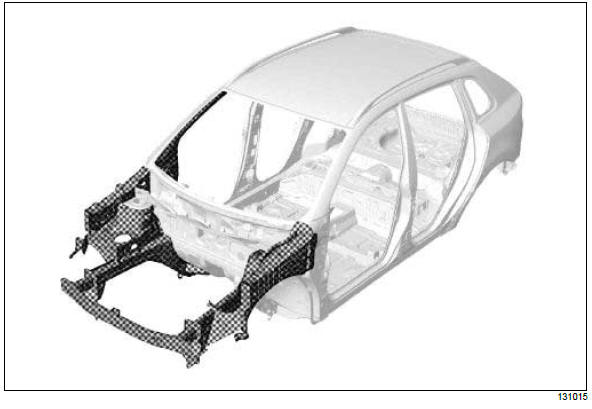

Collision

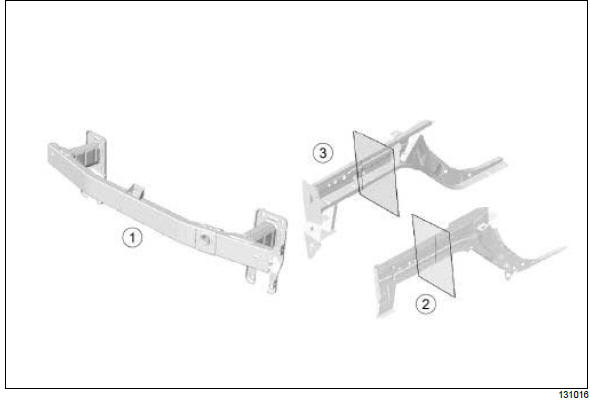

1st Degree

Collision

  1. front end cross member
  2. front side member closure panel
  3. front section of front side member (partial)

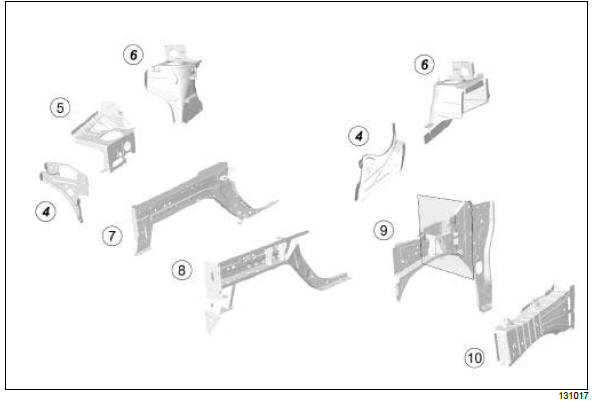

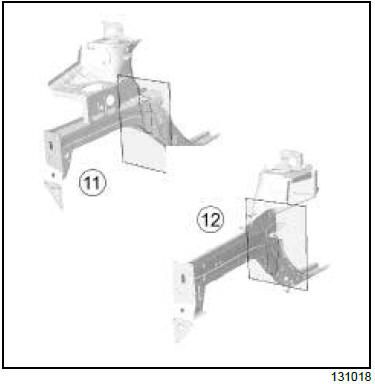

2nd Degree

Collision

  1. front side end cross member
  2. engine support
  3. front wheel arch
  4. front side member closure panel, front section
  5. front side member front section
  6. scuttle side panel
  7. scuttle side panel upper reinforcement

3rd Degree

Collision

  1. front right-hand half unit
  2. front left-hand half unit

Collision

1st Degree

Collision

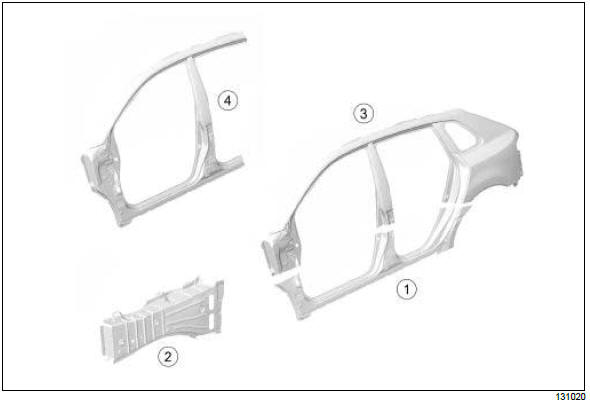

  1. sill panel
  2. scuttle side panel reinforcement
  3. upper body
  4. body side, front section

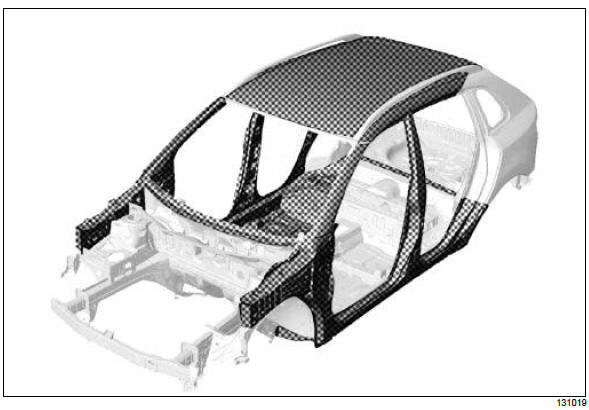

2nd Degree

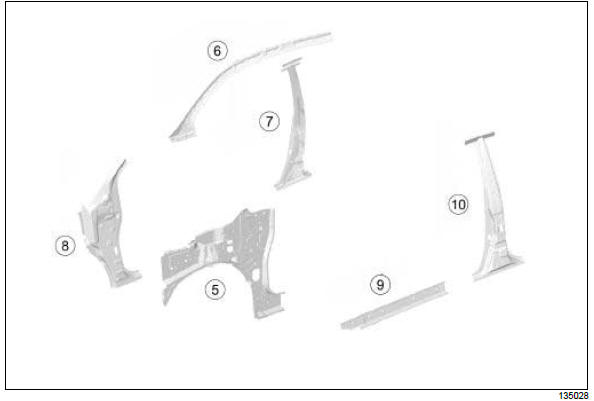

Collision

  1. scuttle side panel
  2. windscreen pillar lining
  3. B-pillar lining
  4. A-pillar reinforcement
  5. inner sill panel
  6. B-pillar reinforcement

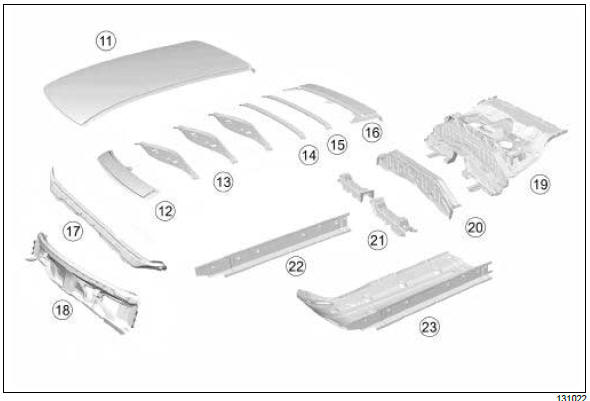

Collision

  1. roof
  2. roof front section
  3. roof front cross member
  4. roof centre cross member
  5. roof rear cross member
  6. roof rear section
  7. bulkhead lower cross member
  8. windscreen pillar lower cross member closure panel
  9. rear floor
  10. rear cross member under front seat
  11. front cross member under front seat
  12. inner sill panel
  13. centre floor side section

Collision

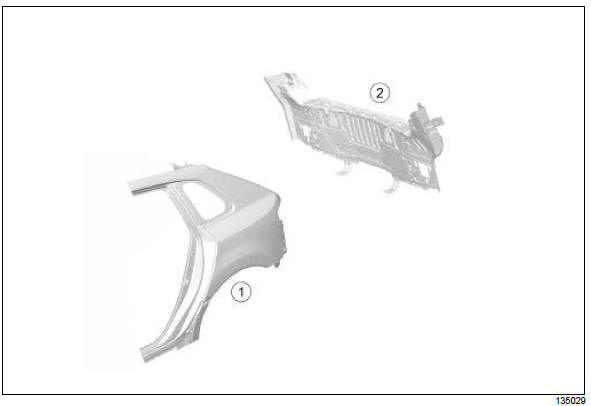

I - FIRST DEGREE REAR IMPACT

Collision

  1. Rear wing panel
  2. Rear end panel

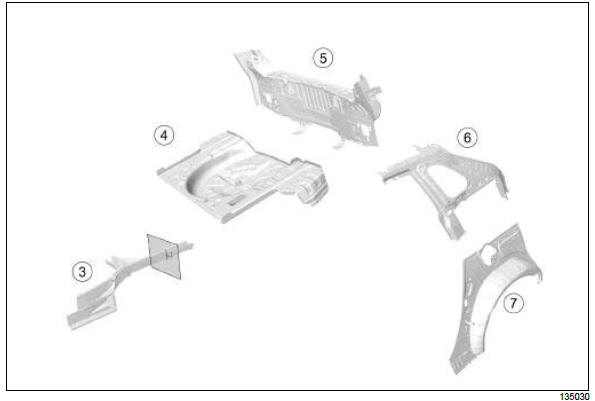

II - SECOND DEGREE REAR IMPACT

Collision

  1. rear side member (partial)
  2. rear section of rear floor
  3. rear end panel
  4. quarter panel lining
  5. outer rear wheel arch

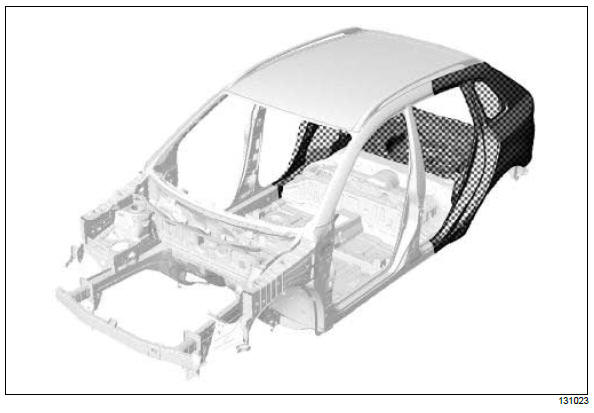

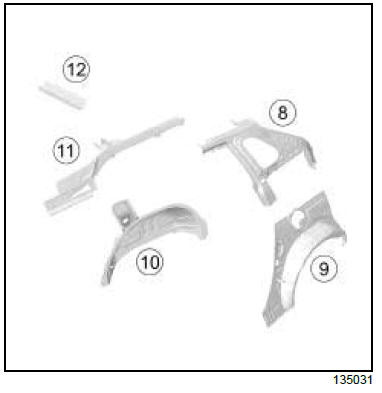

III - THIRD DEGREE REAR IMPACT

Collision

  1. quarter panel lining
  2. outer rear wheel arch
  3. inner rear wheel arch
  4. rear side member
  5. rear centre cross member

Consumables - products

Vehicle: Parts and consumables for the repair

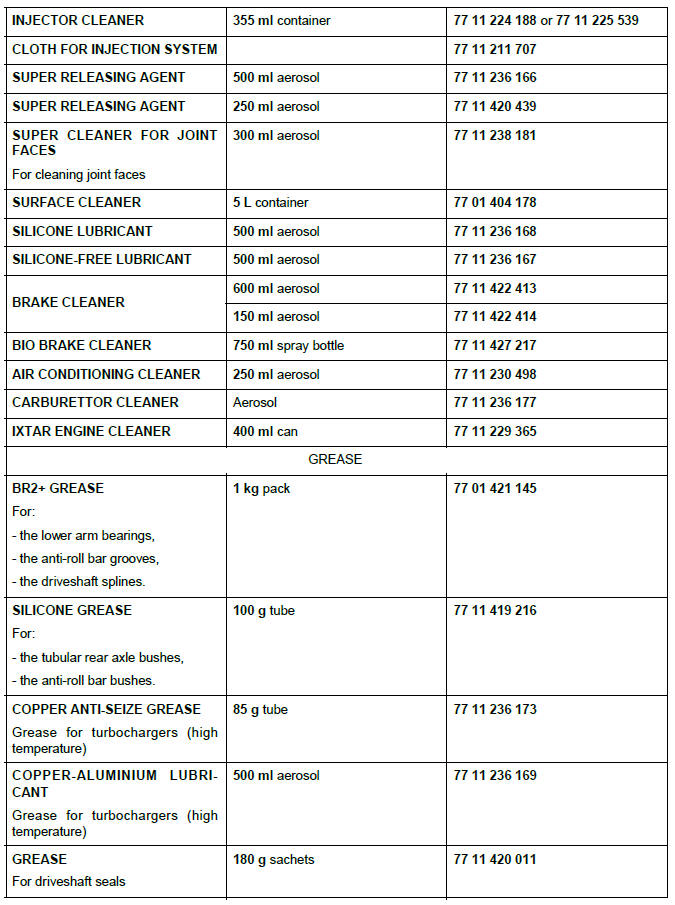

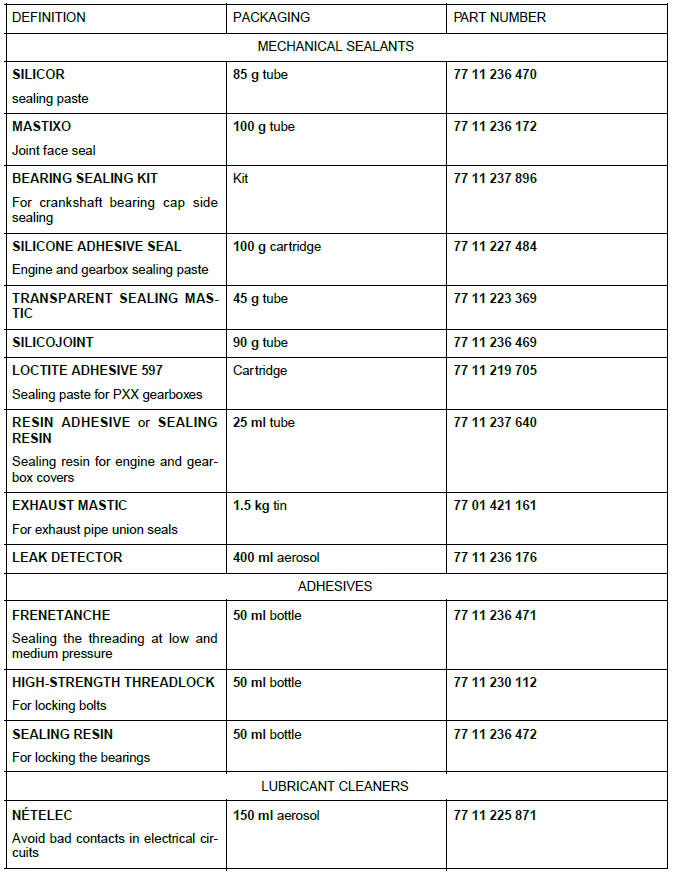

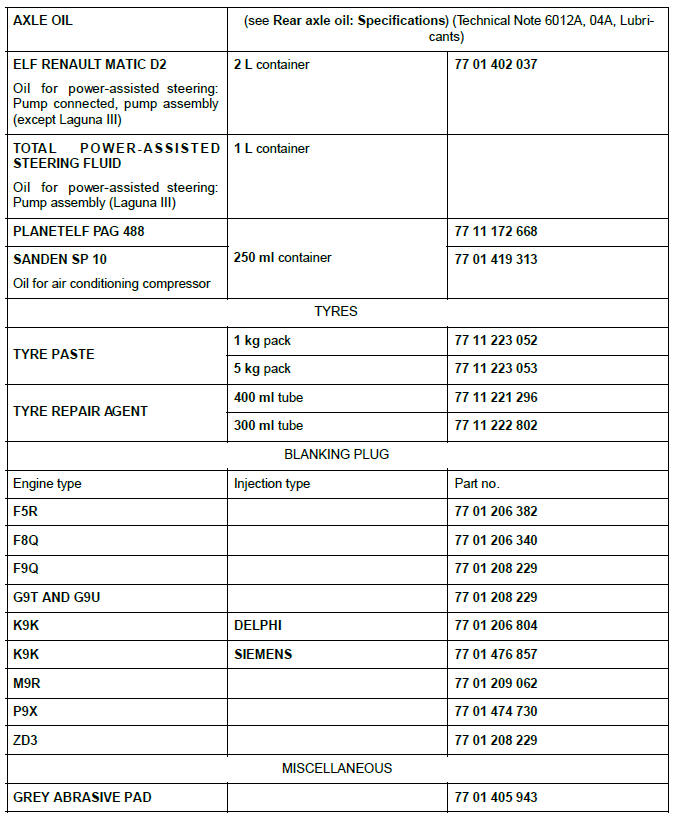

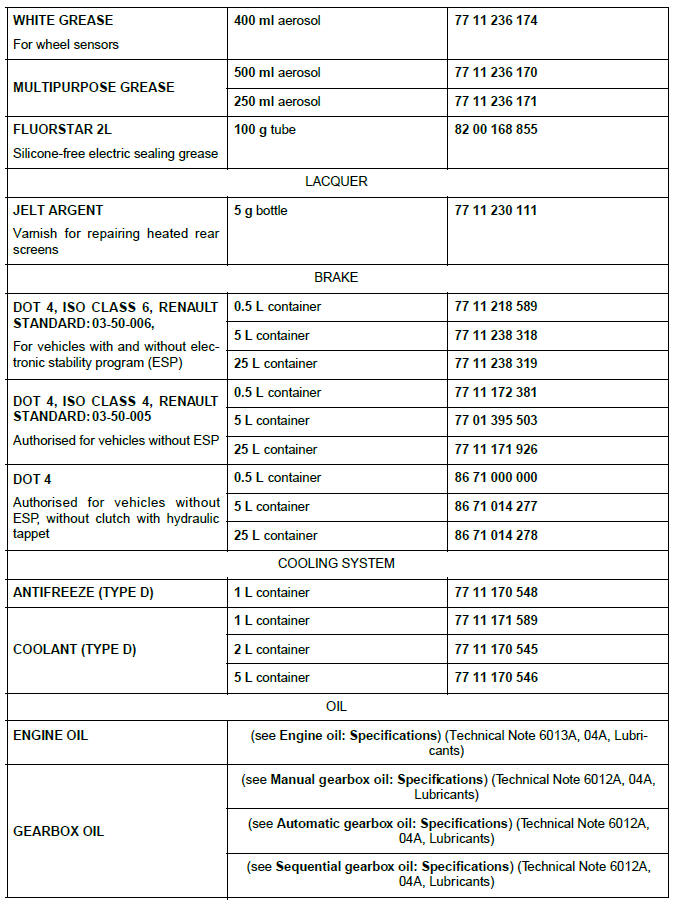

Consumables for mechanical repair:

Consumables - products

Consumables - products

Consumables - products

Consumables - products

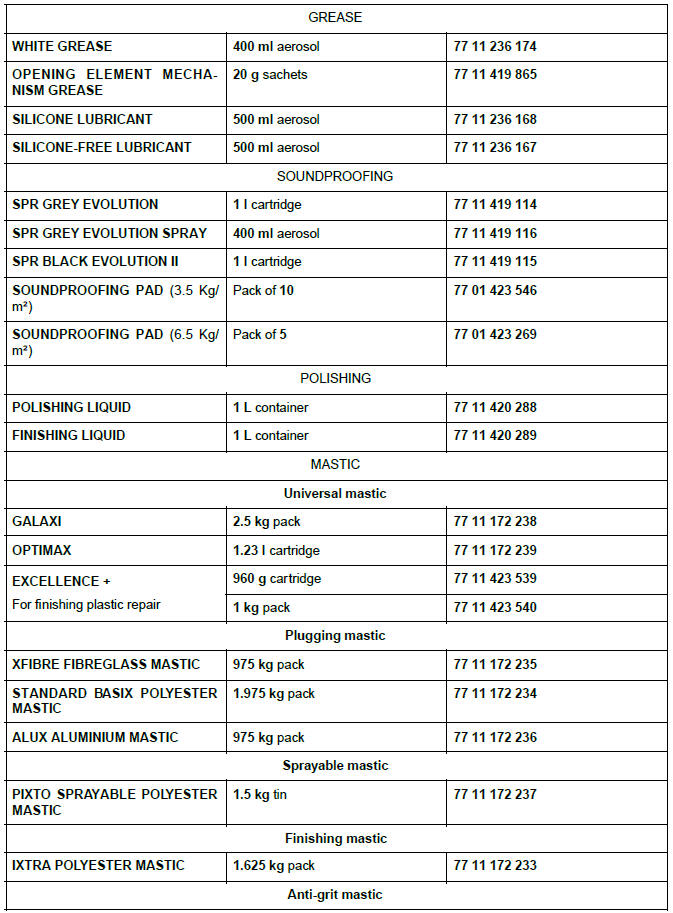

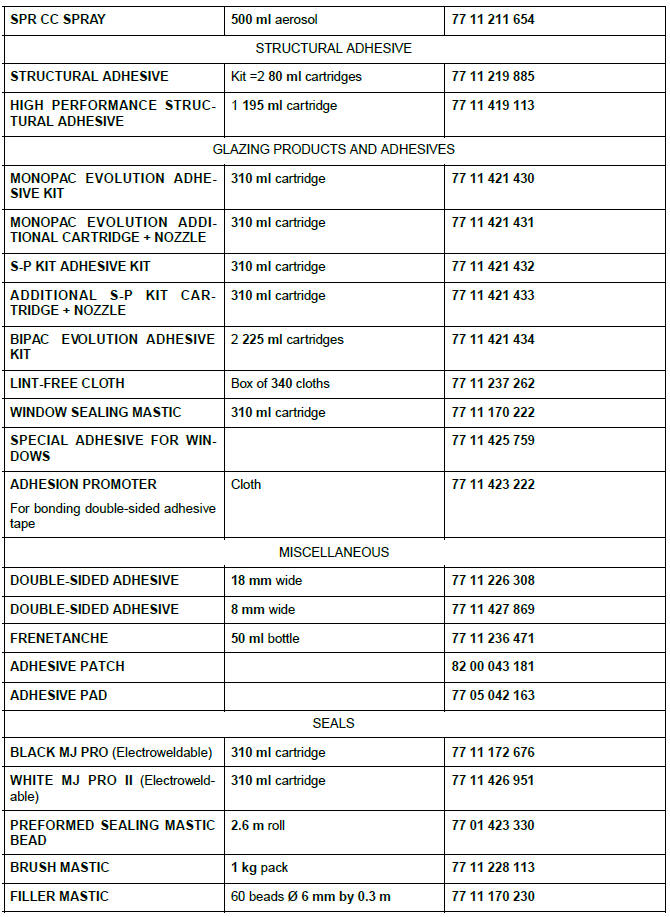

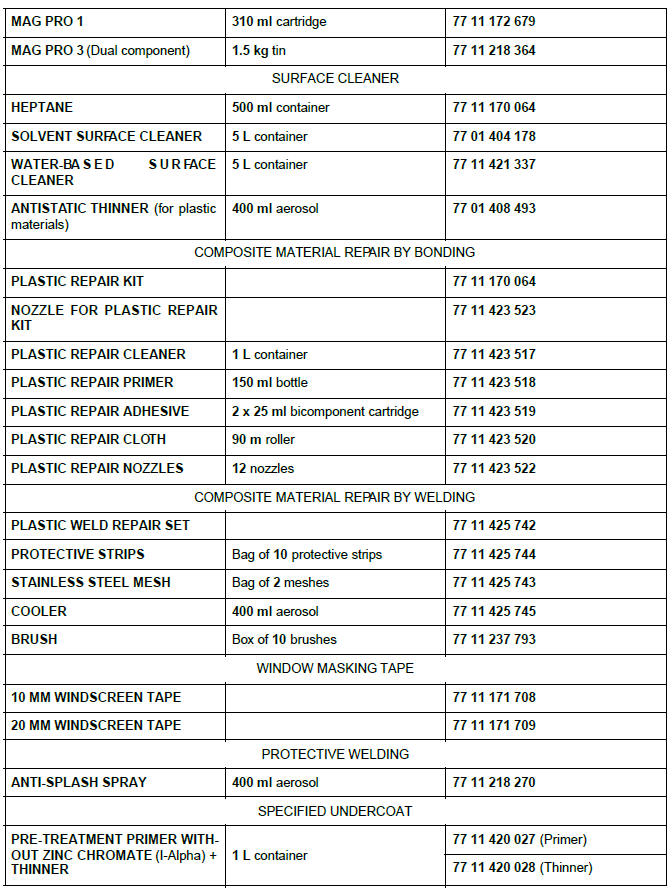

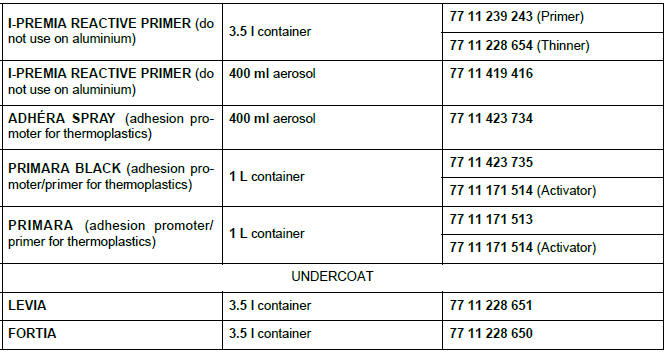

Consumables for bodywork repair:
