Vehicle panel gaps: Adjustment value

WARNING

The clearance values are given for information purposes.

When adjusting clearances, certain rules have to be followed:

  • maintain symmetry with respect to the opposite side,
  • ensure the flush fitting is correct,
  • check correct operation of the opening, and water/ air-tightness.

All values are given in millimetres.

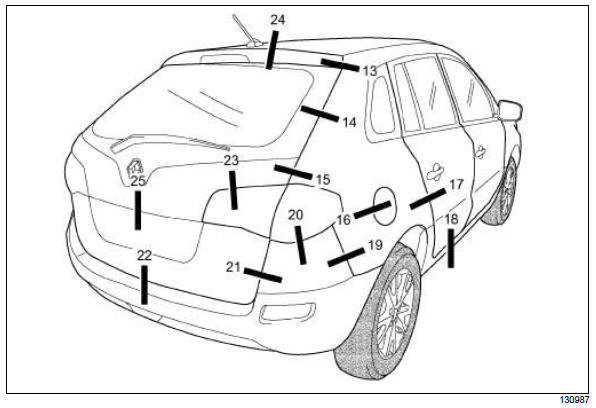

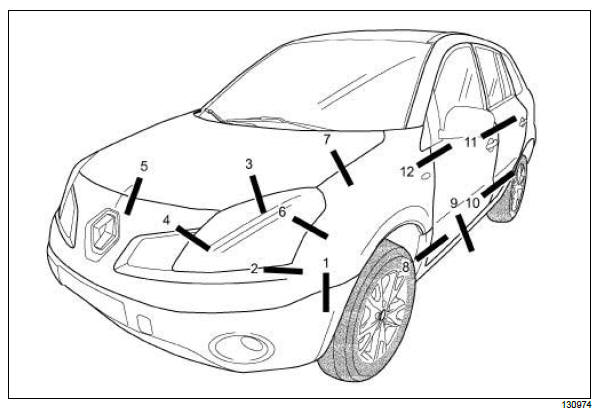

Section 1

Vehicle panel gaps: Adjustment value

(X1) = 0 mm +1/-0

Section 2

Vehicle panel gaps: Adjustment value

(X2) = 0 mm +1/-0

Section 3

Vehicle panel gaps: Adjustment value

(X3) = 4 mm +- 2.5

Section 4

Vehicle panel gaps: Adjustment value

(X4) = 3 mm +- 1

Section 5

Vehicle panel gaps: Adjustment value

(X5) = 4.5 mm +- 2

Section 6

Vehicle panel gaps: Adjustment value

(X6) = 1.5 mm +- 1.4

Section 7

Vehicle panel gaps: Adjustment value

(X7) = 3.5 mm +- 1

Section 8

Vehicle panel gaps: Adjustment value

(X8) = 6.5 mm +- 2.2

Section 9

Vehicle panel gaps: Adjustment value

(X9) = 8 mm +- 2.5

Section 10

Vehicle panel gaps: Adjustment value

(X10) = 4.5 mm +- 2

Section 11

Vehicle panel gaps: Adjustment value

(X11) = 4.4 mm +- 1

Section 12

Vehicle panel gaps: Adjustment value

(X12) = 4.4 mm +- 1

Vehicle panel gaps: Adjustment value

Section 13

Vehicle panel gaps: Adjustment value

(X13) = 3.6 mm +- 1

Section 14

Vehicle panel gaps: Adjustment value

(X14) = 4 mm +- 2.3

Section 15

Vehicle panel gaps: Adjustment value

(X15) = 4 mm +- 1

Section 16

Vehicle panel gaps: Adjustment value

(X16) = 3.2 mm +- 1

Section 17

Vehicle panel gaps: Adjustment value

(X17) = 4.5 mm +-1

Section 18

Vehicle panel gaps: Adjustment value

(X18) = 8 mm +- 2.5

Section 19

Vehicle panel gaps: Adjustment value

(X19) = 0 mm +1/-0)

Section 20

Vehicle panel gaps: Adjustment value

(X20) = 1.5 mm +- 1.5

Section 21

Vehicle panel gaps: Adjustment value

(X21) = 4 mm +- 2

Section 22

Vehicle panel gaps: Adjustment value

(X22) = 8 mm +- 2

Section 23

Vehicle panel gaps: Adjustment value

(X23) = 1.5 mm +- 1

Section 24

Vehicle panel gaps: Adjustment value

(X24) = 6 mm +- 1

Section 25

Vehicle panel gaps: Adjustment value

(X25) = 3 mm +- 1
