Renault Koleos Owners Manual: Front headrests

Front headrests

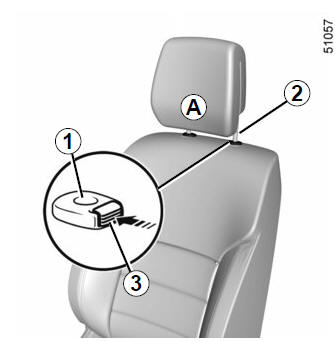

To raise the headrest

Pull the headrest upwards to the desired height. Check that it is correctly locked.

To lower the headrest

Press button 3 and guide the headrest down to the desired height. Check that it is correctly locked in place.

To adjust the angle of the headrest

Depending on the vehicle, move section A towards or away from you to the required position.

Front headrests

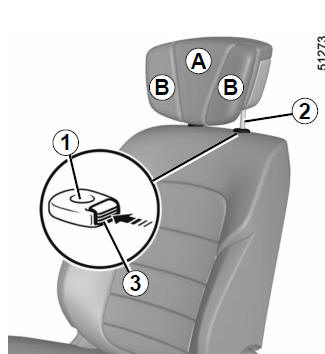

To adjust side supports B

Depending on the vehicle, sections B can be adjusted independently to the desired position.

To refit the headrest

Check that the headrest rods are clean 2. The rod with a notch should be in-serted into the slot 1 fitted with a lock-ing button 3. Insert the headrest rodsinto the holes (tilt the seatbackbackwards if neces-sary).

Press the 3 button and push in the headrest as far as it will go, then adjust it to the desired height. Check that each rod 2 on the seatback is securely locked.

Front headrests

To remove the headrest

Raise the headrest to its highest position (tilt the seatback backwards if necessary). Press button 3 and lift the headrest to release it.

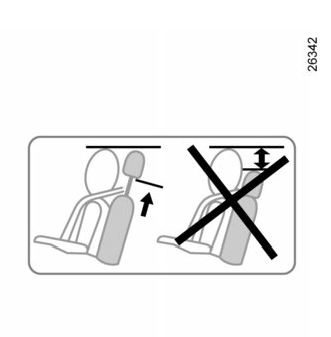

The headrest is important for safety. Ensure that it is in place and in the correct position: the top of the headrest should be as close as possible to the top of the head and there must be a minimal distance between the head and the headrest A.
    Emergency call

    Front seats with manual control
