Front headlights: changing bulbs

Accessing the bulbs

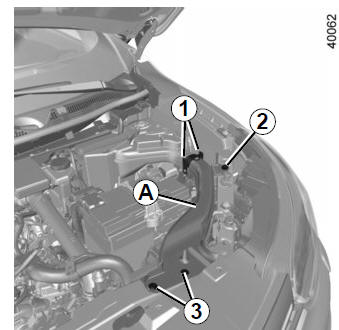

On the left-hand side of the vehicle, you will need to remove the air duct A to access the bulbs. To do this:

  • remove the clips 3;
  • unscrew the bolt 2;
  • press the upper part of the fastening clips 1 to release the air duct A;
  • slide the air duct A towards the front of the vehicle to release it.

After replacing the bulbs, you must put the air duct A back into position. To do this, perform the above operation in reverse.

Before performing any action in the engine compartment, the ignition must be switched off.

Front headlights: changing bulbs

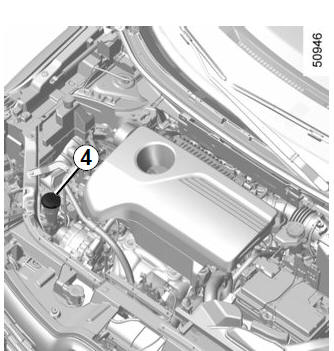

On the right-hand side of the vehicle, you will need to remove the filler neck 4 for the windscreen washer tank to access the bulbs. To do this:

  • remove the clip for the funnel 4;
  • pull the funnel 4.
The engine may be hot when carrying out operations in close proximity. In addition, the engine cooling fan can come on at any moment.

Risk of injury.

Front headlights: changing bulbs

Halogen dipped beam headlight

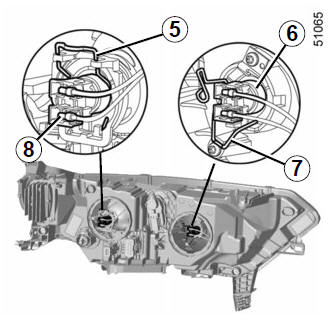

To change the bulb:

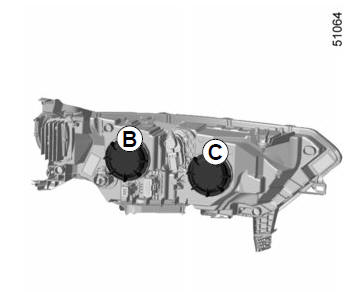

  • remove cover B;
  • remove the clip 5 pressing down on it;
  • remove the connector 8;
  • replace the bulb.

Bulb type: H7.

The bulbs are under pressure and can break when replaced.

Risk of injury.

Front headlights: changing bulbs

Halogen main beam headlight

To change the bulb:

  • remove cover C;
  • remove the clip 7 pressing down on it;
  • remove the connector 6
  • replace the bulb.

Bulb type: H7.

It is essential to use anti-U.V. 55W bulbs so as not to damage the plastic on the headlights.

Do not touch the bulb glass. Hold it by its base.

When the bulb has been changed, make sure you refit the cover correctly.

Front headlights: changing bulbs

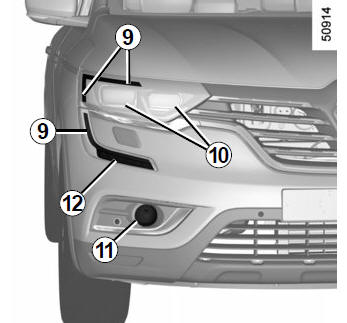

LED dipped beam/main beam headlights 10

Please see an authorised dealer.

Daytime running lights and side lights 9

Please see an authorised dealer.

Front fog lights 11

The front bumper needs to be removed; consult an approved Dealer.

Bulb type: H11.

LED front fog lights 11

Please see an authorised dealer.

LED Direction indicator light 12

Please see an authorised dealer.

To comply with local legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from an approved dealer.



The bulbs are under pressure and can break when replaced.

Risk of injury.

Additional lights

If you wish to fit fog lights to your vehicle, please see an authorised dealer.

Any operation on (or modification to) the electrical system must be performed by an approved dealer since an incorrect connection might damage the electrical equipment (harness, components and in particular the alternator). In addition, your Dealer has all the parts required for fitting these units.
